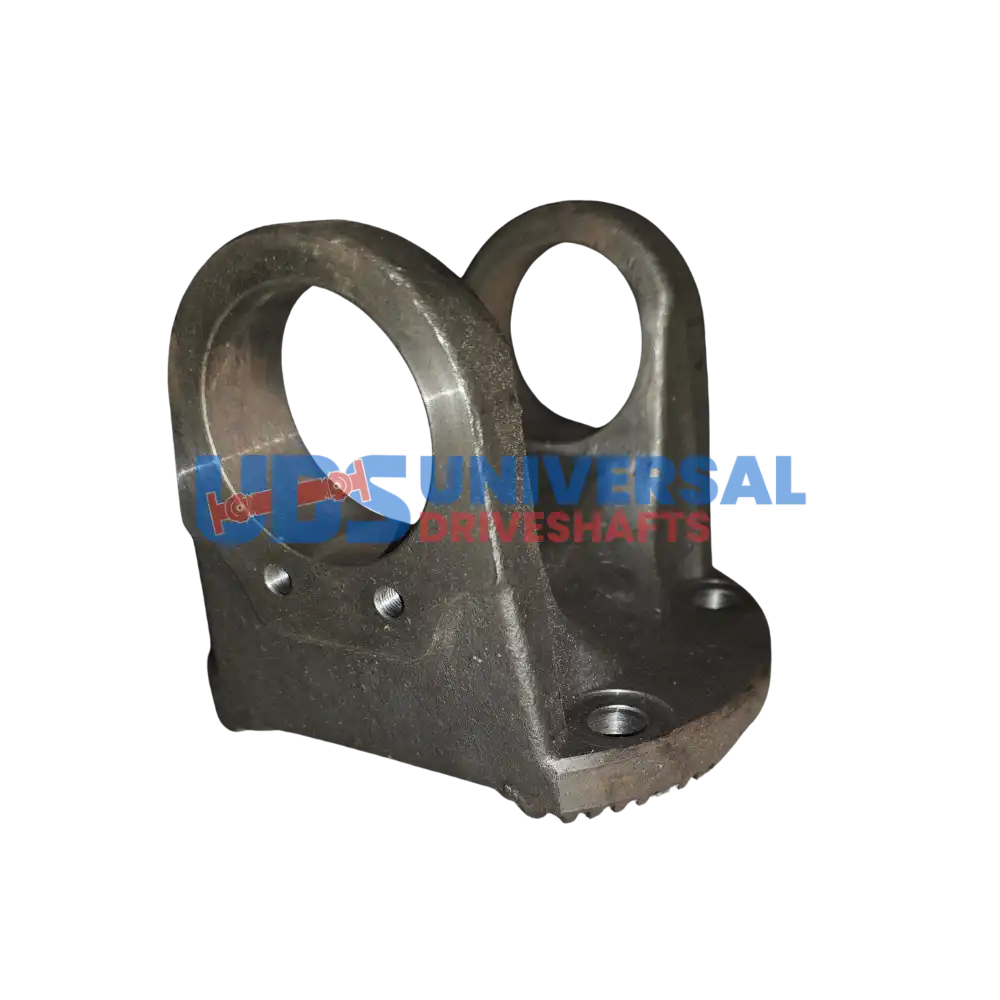

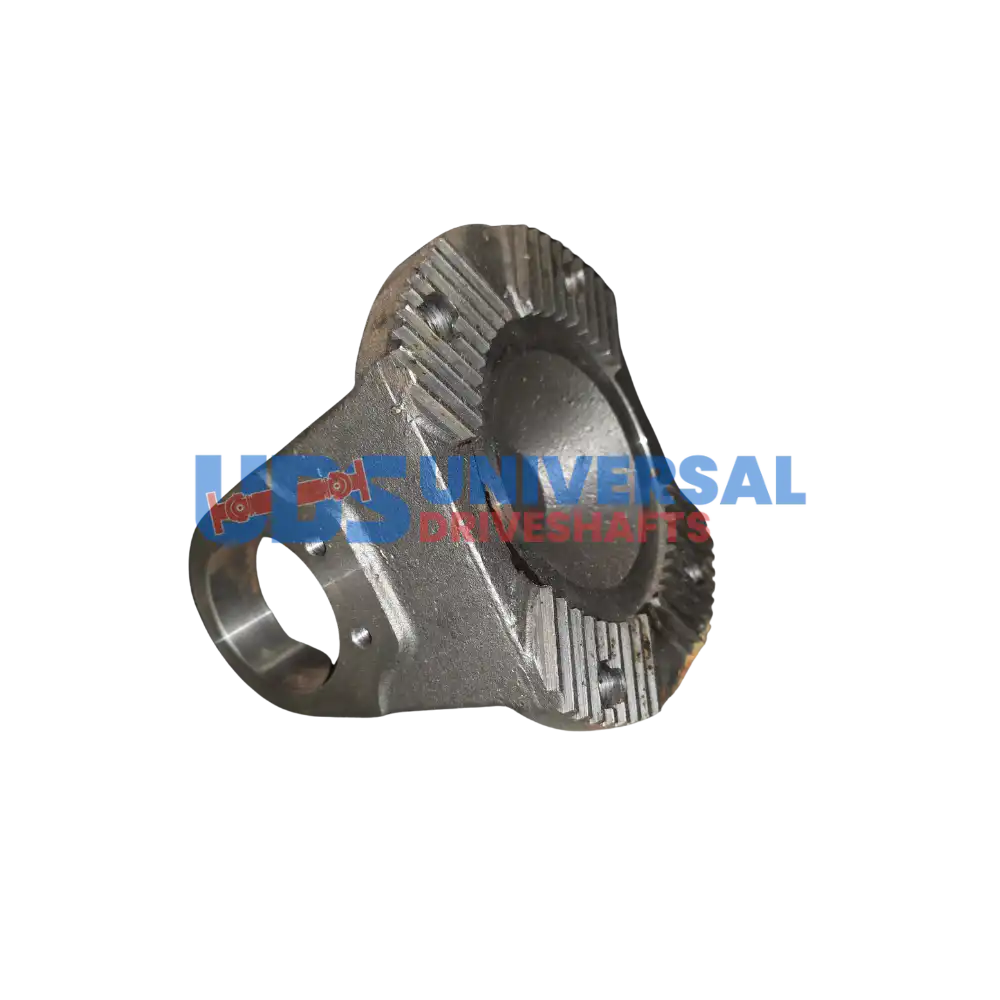

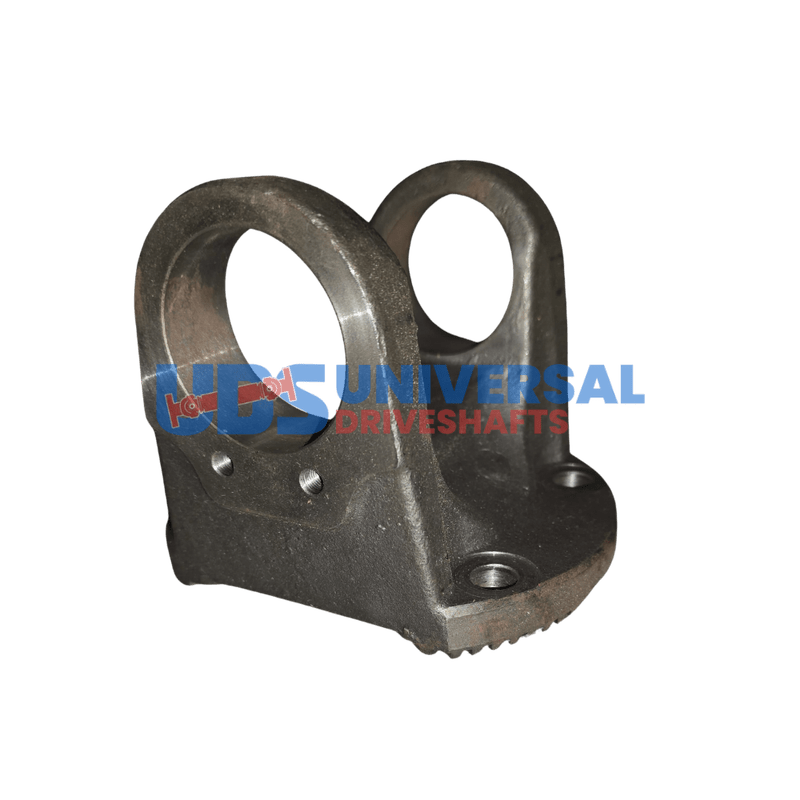

250-2-15 Flange Yoke SPL250 series, Serrated 180xs- Bolt Circle Diameter: 5.906 CL To End: 3.583″

250-2-15 is a Flange Yoke specifically designed for SPL250 Series applications, such as the SPL250 XS180 Serrated. This yoke connects the driveshaft to the transmission or differential, ensuring a robust driveline setup. A critical feature is the 5.906″ bolt circle diameter, which must align perfectly with your mounting points to avoid misalignment issues that can lead to vibrations or premature wear.

If you’re experiencing vibrations during acceleration or unusual noises, the yoke may be worn or improperly phased. Inspect the spline engagement depth and ensure it matches the specifications for your application. The XS 180 pilot diameter is essential for proper fitment, allowing for smooth operation without play that can cause further damage.

• Check the bolt circle diameter of 5.906″ for compatibility.
• Ensure the pilot diameter is XS 180 for a secure fit.
• Verify the bolt hole diameter of 0.551″ for correct fastener sizing.
• Inspect the Cj to flat measurement of 3.583″ for proper alignment.
• Always confirm the yoke is phased correctly with the opposite yoke to prevent driveline issues.

Replacing a worn yoke with the 250-2-15 restores proper function and reliability to your driveline system. Remember, proper installation and alignment are key to avoiding future failures.
