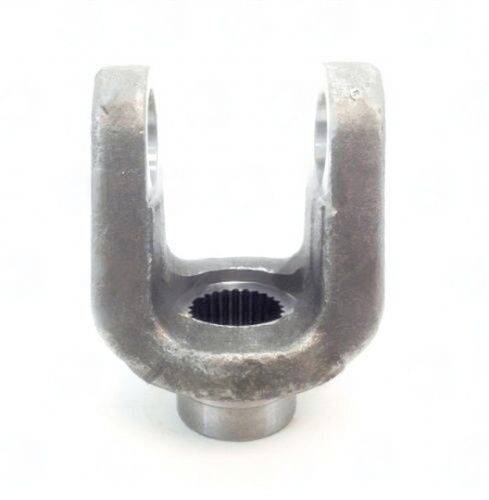

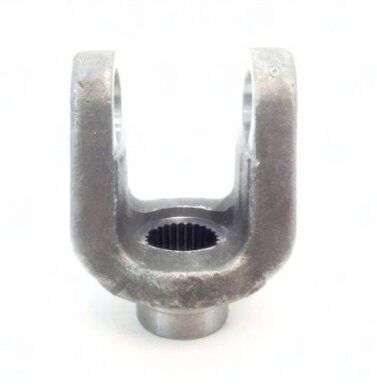

2304-261 – End Yoke – 2351 Series – 1.115″ Splines Dia – 24/26 Spline
$85.56
1 in stock
Description
2304-261 is an essential End Yoke that connects the driveshaft to the transmission, transfer case, or differential, specifically designed for use in Toyota applications with a 1253-261 stub. This yoke features a 1.115″ spline diameter and a spline count of 24/26, making it compatible with the 2351 Series U-joint. The dimensions are critical for ensuring proper fit and function within the driveline.
With a hub diameter of 1.445″ and a Cj to end measurement of 3.312″, the 2304-261 End Yoke is engineered to handle the torque transfer requirements of your vehicle. The ISR style and through hole of 1.300″ provide additional versatility in installation options. It’s important to verify spline engagement depth during installation to ensure optimal performance.
- Check spline count and diameter for compatibility.
- Ensure proper phasing with the opposite yoke.
- Do not force spline entry; align carefully.
- Inspect the yoke and mating components for wear.
- Torque fasteners to manufacturer specifications.
In Toyota driveline designs, the End Yoke plays a crucial role in maintaining the integrity of the powertrain, especially during suspension travel. The 2304-261 is built to withstand the demands of daily driving and performance applications alike, making it a reliable choice for technicians and builders.
| Cj to end |
3.312 |
|---|---|
| Hub dia |
1.445 |
| Notes |
USED ON 2 PCS TOYOTA SHAFT WITH 1253-261 STUB |
| Partn number |
2304-261 |
| Series |
2351 |
| Splines count |
24/26 |
| Splines dia |
1.115 |
| Style |
ISR |
| Through hole |
1.300" |
