2302-19 – Flange Yokes – 2351 Series – Bolt Circle Dia 2.750″ – Bolt Holes 4

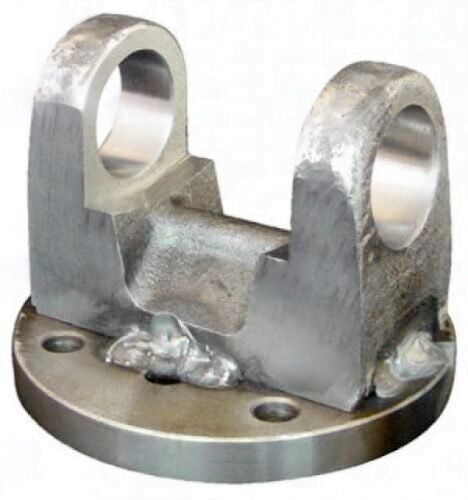

2302-19 Flange Yoke is a vital component for reliable driveline connections. This yoke fits the 2351 Series, ensuring that the spline and series specifications align perfectly for optimal performance. The 2.750 inch bolt circle diameter means it provides a secure fit to mating components, which is crucial for maintaining driveline integrity under load.

The four bolt holes, each measuring 0.325 inches in diameter, allow for easy installation and a strong connection to the companion flange or tubing. The pilot diameter of 1.492 inches ensures proper centering during installation, which is essential for minimizing vibrations and ensuring smooth operation. Additionally, the CJ to flat distance of 2.000 inches helps maintain the correct alignment in the driveline system.

When installing the 2302-19, keep these tips in mind:

• Check spline engagement depth before installation.
• Ensure proper phasing with the opposite yoke.
• Do not force spline entry; it should slide in smoothly.
• Verify that all bolt holes are aligned before tightening.

In summary, the 2302-19 Flange Yoke is engineered for precision and durability, making it an excellent choice for any application requiring a 2351 Series connection. Its specific dimensions and robust design help prevent failures and ensure a long service life in demanding environments.
