2254-693 – Stub & Midship Shaft – Bearing Dia 985″ – Butt Dia 2.344″ – End To Weld 7.550
$100.57
Description

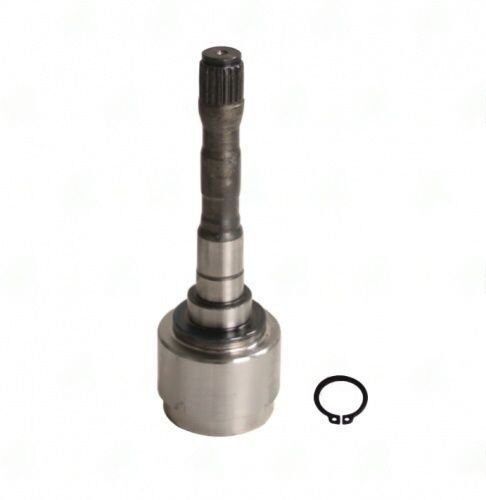

The 2254-693 Stub & Midship Shaft is a critical component for effective torque transmission in your driveline system. Designed with precision, this shaft features a Bearing Diameter of 985″ and a Butt Diameter of 2.344″. The End To Weld measurement is 7.550″, ensuring a proper fit in various applications. This shaft is equipped with 19 X 0.850 Splines and a Splines Length of 879″, which are essential for maintaining the integrity of the connection between the transmission and the differential.
In many driveline setups, including those used in performance and heavy-duty applications, the Stub & Midship Shaft plays a vital role in handling torque loads and stabilizing the drivetrain. The robust Tube Diameter Wall of 2.500X0.083 provides additional strength, making it suitable for demanding environments. It’s important to note that the 2254-693 is used with the 2252-682, ensuring compatibility across various setups.
- Verify spline count and diameter for proper fit.
- Ensure the End To Weld measurement matches your application.
- Check for proper phasing during installation.
- Torque bolts to manufacturer specifications to avoid failures.
- Balance the assembly if vibration occurs.
When installing the 2254-693, always inspect your mating components as a system to ensure optimal performance. This shaft is engineered to deliver reliability and efficiency, making it an essential part of your driveline assembly.
| Bearing dia | 985 |
|---|---|
| Butt dia | 2.344 |
| End to weld | 7.550 |
| Notes | USED WITH: 2252-682 |
| Partn number | 2254-693 |
| Remaining stock | <10 |
| Splines count dia | 19 X 0.850 |
| Splines length | 879 |
| Tube dia | 2.500 |
| Style | CVJ |
| Tube wall | 0.083" |
