2254-683 – Stub & Midship Shaft – Bearing Dia 985″ – Butt Dia 2.375″ – End To Weld 7.550
$101.95
Description

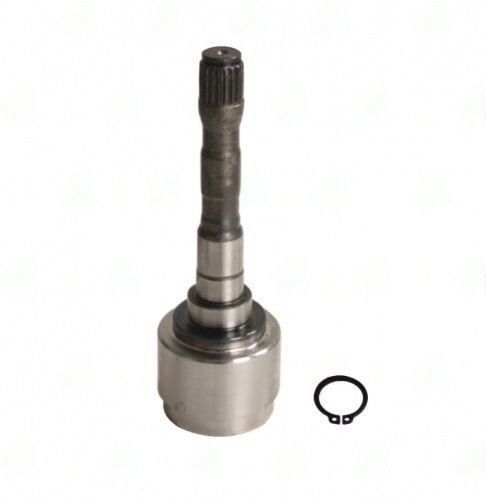

2254-683 is a Stub & Midship Shaft designed to deliver reliable torque transmission in driveline applications. With a Bearing Diameter of 985″, this dimension ensures a snug fit within the assembly, crucial for maintaining alignment and minimizing wear. The Butt Diameter of 2.375″ contributes to the overall strength of the shaft, allowing it to handle the stresses encountered during operation.
Equipped with 19 X 0.850 Splines, the 2254-683 provides a robust connection to the mating components, ensuring effective torque transfer. The Splines Length measures 879″, which is critical for achieving the correct phasing and alignment within the driveline system. Additionally, the Tube Diameter Wall is constructed at 2.500X0.065, providing the necessary rigidity while keeping weight in check.
The End To Weld dimension of 7.550″ is essential for compatibility with specific applications, particularly those using the 2252-682 component. When installing the 2254-683, it’s important to verify phasing marks and check for runout to prevent vibrations that could lead to premature failure.
- Verify spline count and ensure proper fit with 2252-682
- Check runout before installation to avoid vibrations
- Torque bolts to specification for secure assembly
- Balance the assembly if any vibration is detected
In summary, the 2254-683 Stub & Midship Shaft is engineered for precision and durability, making it an essential component for any driveline system.
| Bearing dia |
985 |
|---|---|
| Butt dia |
2.375 |
| End to weld |
7.550 |
| Notes |
USED WITH: 2252-682 |
| Partn number |
2254-683 |
| Remaining stock |
>10 |
| Splines count dia |
19 X 0.850 |
| Splines length |
879 |
| Tube dia |
2.500 |
| Tube wall |
0.065" |
| Style |
CVJ |
