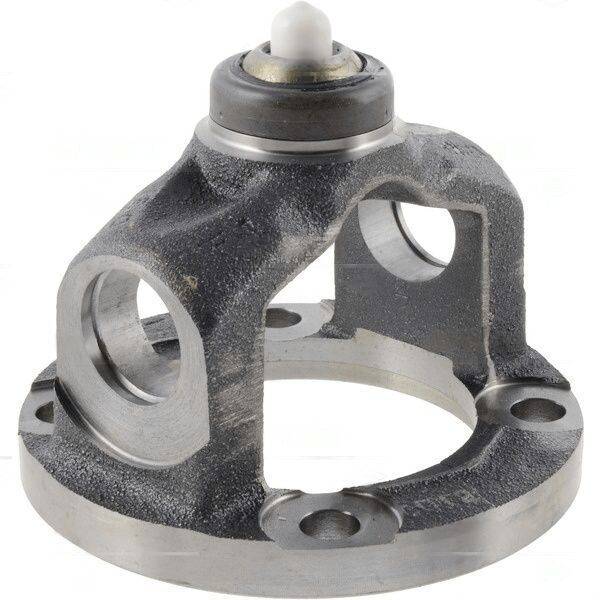

211889X – Cv Flange Yokes – 1330 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 4

When you’re ready to install the 211889X Cv Flange Yoke, ensure you have the right setup for a smooth installation. This yoke is designed for 1330 Series applications, featuring a 0.5″ ball stud diameter and a 4″ bolt circle, making it ideal for rectangular bolt circle configurations.

Before sliding this yoke onto the driveshaft, double-check the bolt hole diameter of 4.53″ to ensure proper fitment. A common mistake is mismatching the bolt circle with the companion flange, which can lead to misalignment and premature wear. Always verify the pilot diameter of 3.125″ and the centerline to face measurement of 1.875″ to avoid any installation issues.

• Check spline engagement depth before installation.
• Ensure the yoke is aligned with the opposite yoke to maintain proper phasing.
• Use a torque wrench to tighten bolts to the manufacturer’s specifications.
• Inspect the mating components for wear or damage before installation.

This yoke, branded SPICER, falls under the LD class, ensuring it meets the demands of your application. Remember, the pilot type is F, which is crucial for maintaining the integrity of the connection. With the right attention to detail, the 211889X will deliver reliable performance in your driveline setup.
