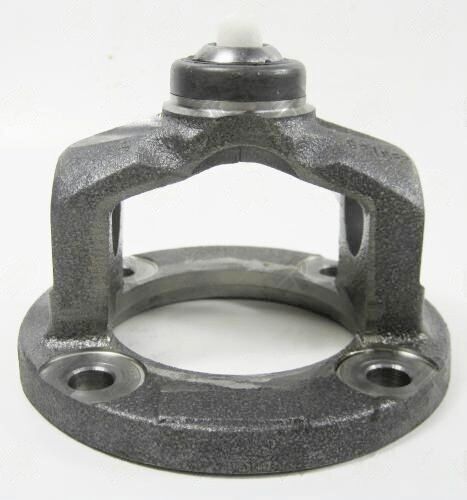

The 211868X Cv Flange Yoke is a critical component for connecting your driveshaft to the transmission or differential. Designed specifically for the 1330 Series, this yoke features a 0.5″ ball stud diameter and a 4.25″ bolt circle diameter, making it essential for applications requiring precise fitment and reliable operation.
What sets the 1330 Series apart from other yoke series is its unique dimensions and compatibility with specific U-joint configurations. For example, if you mistakenly use a 1310 Series yoke, the difference in cap diameter will prevent proper installation, leading to potential driveline failure. The 211868X ensures that you maintain the correct geometry and engagement with your U-joint, which is crucial for smooth operation.
Key specifications of the 211868X include:
- Ball Stud Dia: 0.5″
- Bolt Circle Dia: 4.25″
- Bolt Hole Dia: 453″
- Pilot Dia: 3.125″
- C L To Face: 1.812″
When installing the 211868X, always check the spline engagement depth and verify phasing with the opposite yoke. This yoke’s design allows for axial movement, which is vital during suspension travel. Using the right yoke, like the 211868X, ensures that your driveline operates efficiently and effectively, reducing the risk of wear and failure.
