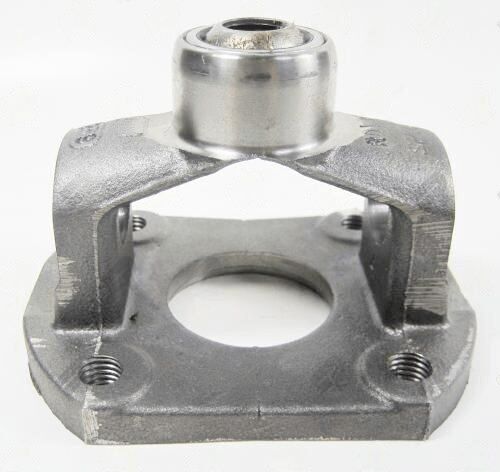

211631X – Cv Flange Yokes – 1330 Series – Ball Stud Dia 0.5″ – Bolt Circle Dia 4.25

The 211631X Cv Flange Yoke is a critical component for any driveline setup utilizing the 1330 Series. This yoke connects the driveshaft to the transmission or differential, ensuring smooth torque transfer and reliable performance. With a ball stud diameter of 0.5 inches and a bolt circle diameter of 4.25 inches, this yoke is engineered to fit seamlessly into your driveline configuration.

One of the standout features of the 211631X is its compatibility with the repair kit 3325-50, which allows for easy maintenance and replacement of worn components. This is particularly important in applications where the driveline is subjected to high stress and frequent use. The pilot diameter of 2 inches and a C L to face measurement of 1.625 inches ensure proper alignment and engagement during installation.

• Series: 1330
• Ball Stud Diameter: 0.5 inches
• Bolt Circle Diameter: 4.25 inches
• Compatible Repair Kit: 3325-50
• Class: LD

When installing the 211631X, always check the spline engagement depth and verify phasing with the opposite yoke to prevent premature wear. This yoke is designed to handle the axial movement required during suspension travel, making it a reliable choice for both performance and fleet applications. Trust the 211631X Cv Flange Yoke to deliver the durability and performance you need in your driveline system.
