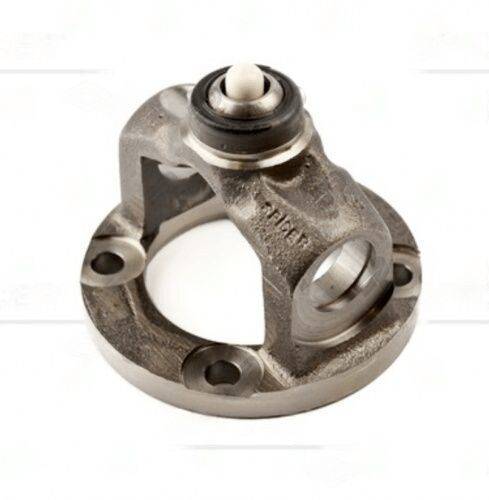

When working with the 211606X Cv Flange Yoke, it’s crucial to ensure proper alignment and fitment. This yoke is designed for use with a 1330 Series driveshaft and features a 4″ bolt circle diameter, a 0.5″ ball stud diameter, and a pilot diameter of 3.125″. Before installation, confirm that the bolt hole diameter of 0.453″ matches your application, as mismatches can lead to improper mounting and potential failure.
One common mistake during installation is neglecting to check the centerline to face measurement of 1.812″. This dimension is critical for ensuring that the yoke aligns correctly with the transmission or differential. Additionally, always verify the rectangular bolt circle configuration to avoid compatibility issues.
Here are some installation tips to keep in mind:
- Check the spline engagement depth before sliding the yoke onto the driveshaft.
- Ensure the phasing aligns with the opposite yoke to prevent vibration.
- Use a torque wrench to tighten bolts to the manufacturer’s specifications.
- Inspect the yoke for any signs of wear or damage before installation.
The 211606X Cv Flange Yoke is built by SPICER, known for their reliable driveline components. This yoke is classified as LD and is designed for robust applications. Proper installation and alignment will ensure optimal performance and longevity of your driveline system.
