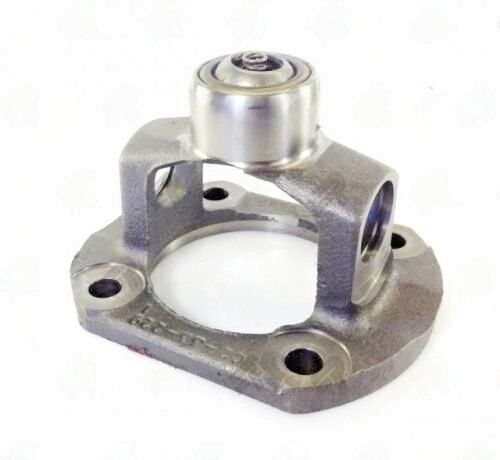

211545X – Cv Flange Yoke – Ball Stud Dia 0.5″ – Bolt Circle Dia 4.25″ – Bolt Hole Dia 453″

211545X is a Cv Flange Yoke that plays a crucial role in connecting your driveshaft to the transmission or differential. This specific yoke is designed for 1310 Series applications, making it essential for maintaining the integrity of your driveline system. The 0.5″ ball stud diameter and 4.25″ bolt circle diameter are key specifications that differentiate this yoke from others.

When comparing yokes, it’s important to note that the 1310 Series yoke has distinct dimensions that ensure compatibility with the correct U-joint. Using a yoke that is close in size but not an exact match can lead to improper fitment and potential failure. For instance, a 1350 yoke may appear similar but has a larger cap diameter, which will not accommodate the 1310 U-joint.

Installation of the 211545X requires careful attention to detail. Ensure that you check the spline engagement depth and verify phasing with the opposite yoke. Never force the spline entry, as this can damage both the yoke and the driveshaft.

• Ball Stud Diameter: 0.5″
• Bolt Circle Diameter: 4.25″
• Bolt Hole Diameter: 453″
• Pilot Diameter: 3.125″
• C L To Face: 1.625″

In summary, the 211545X Cv Flange Yoke is a reliable choice for your driveline needs, ensuring proper fitment and functionality in 1310 Series applications.
