2102-50 – Flange Yokes – 1210 Series – Bolt Circle Dia 3.937″ – Pilot Dia 2.875-F
$50.73
1 in stock
12 People watching this product now!
Description

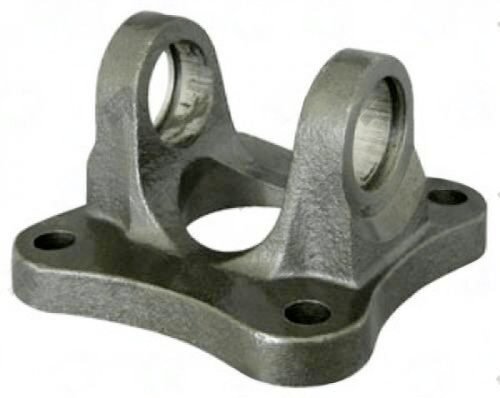

The 2102-50 Flange Yoke is a 1210 series component designed for reliable driveshaft connections. It features a female pilot diameter of 2.875 inches and a bolt circle diameter of 3.937 inches. The yoke includes four bolt holes, each with a diameter of 0.413 inches. The distance from the centerline of the joint to the flat is 1.240 inches, ensuring a secure and precise fit in various applications.
Additional information
| Bolt circle dia | 3.937 |
|---|---|
| Bolt hole dia | 0.413 |
| Cj to flat | 1.240 |
| Partn number | 2102-50 |
| Pilot dia | 2.875-F |
| Series | 1210 |
| Bolt Holes | 4 |
