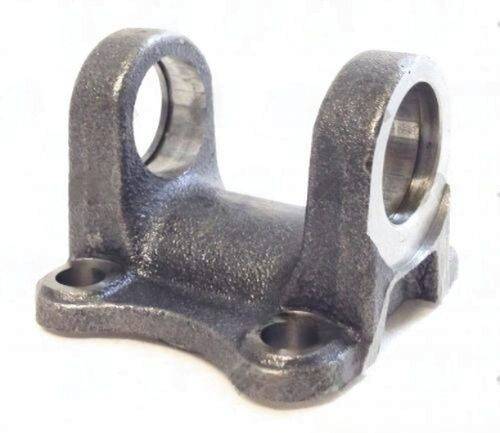

2102-222 – Flange Yokes – 1210 Series – Bolt Circle Dia 2.997″ – Pilot Dia 2.244-M

When a technician encounters a vehicle with a driveshaft vibration or misalignment, it often points to a failing connection at the yoke. The 2102-222 Flange Yoke is a critical component that addresses these issues effectively. Designed for the 1210 Series, this yoke features a bolt circle diameter of 2.997 inches and a male pilot diameter of 2.244 inches, ensuring a secure fit to the transmission or differential.

With four bolt holes, each measuring 0.400 inches in diameter, the 2102-222 allows for easy installation and reliable attachment to companion flanges. The centerline to flat distance of 1.500 inches is crucial for maintaining proper alignment during operation. If you’re replacing a worn or damaged yoke, this part is engineered to fit seamlessly, reducing the risk of further driveline issues.

• Series: 1210
• Bolt Circle Diameter: 2.997 inches
• Pilot Diameter: 2.244 inches
• Bolt Hole Diameter: 0.400 inches
• Centerline to Flat Distance: 1.500 inches

For optimal performance, always verify the spline engagement depth and ensure proper phasing with the opposite yoke. The 2102-222 is your go-to solution for maintaining driveline integrity and performance.
