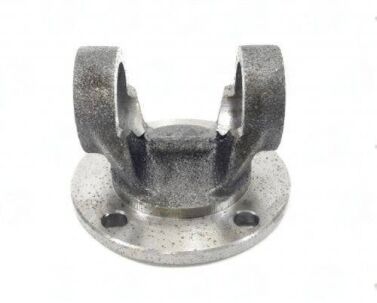

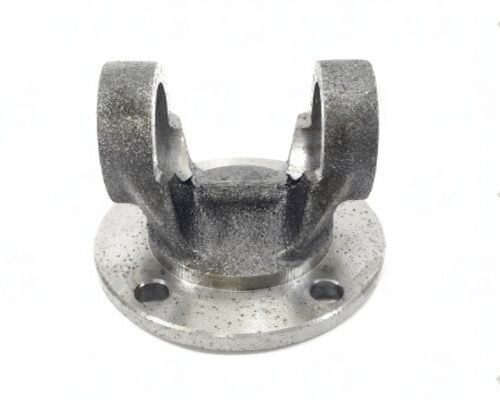

2102-221 – Flange Yokes – 1210 Series – Bolt Circle Dia 2.930″ – Pilot Dia 2.240-M

The 2102-221 Flange Yoke is a vital component in the 1210 Series, engineered for reliable driveshaft connections. This yoke features a bolt circle diameter of 2.930 inches and a male pilot diameter of 2.240 inches, which are critical dimensions for ensuring a secure fit with companion flanges. The four bolt holes, each measuring 0.345 inches in diameter, provide ample fastening points to maintain stability under load.

In driveline applications, the 1210 Series yoke is particularly suited for vehicles that require a balance between strength and weight. Its design allows for efficient torque transfer while accommodating the necessary axial movement during suspension travel. Proper installation is crucial; ensure the spline engagement depth is correct and that phasing aligns with the opposite yoke to prevent vibrations and premature wear.

• Series: 1210
• Bolt Circle Diameter: 2.930 inches
• Pilot Diameter: 2.240 inches
• Bolt Hole Diameter: 0.345 inches
• Number of Bolt Holes: 4

When working with the 2102-221, always check for compatibility with your specific application. This yoke not only fits a range of vehicles but also meets the demands of performance builds, making it a versatile choice for both fabrication shops and fleet technicians.
