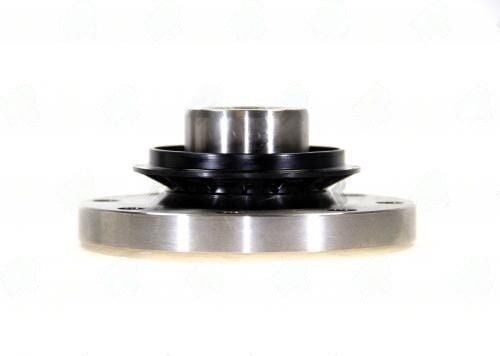

2010948 – Companion Flanges – 1.276″ Splines Dia – 4.250″ Bolt Circle Dia – 1.875″ Hub Dia
$98.88
1 in stock
Description
When working on a Dana 60 or 70 pinion conversion, the right companion flange is crucial for a smooth drivetrain operation. The 2010948 is specifically designed for this application, featuring a 1.276″ spline diameter and a 4.250″ bolt circle diameter. If you experience vibrations or misalignment in your driveline, it’s often due to a worn or incorrectly fitted flange. The 2010948 addresses these issues directly.
This flange boasts a hub diameter of 1.875″ and a pilot diameter of 2.000″, ensuring a snug fit against the differential or transfer case. With 29 splines, it provides a robust connection to the driveshaft, minimizing the risk of slippage or failure. The through hole measures 1.500″, allowing for easy installation and alignment.
When installing the 2010948, remember to:
- Clean all mating surfaces thoroughly to ensure a proper seal.
- Torque the bolts in a star pattern to prevent uneven stress.
- Check the face runout to avoid vibrations during operation.
By using the 2010948, you can confidently restore your vehicle’s driveline integrity. This part is essential for maintaining optimal performance in your Dana 60 or 70 setup. Don’t overlook the importance of a properly installed companion flange; it can save you from costly repairs down the line.
| Bolt circle dia | 4.250 |
|---|---|
| Hub dia | 1.875 |
| Notes | Dana 60, 70 Pinion Conversion Flange |
| Partn number | 2010948 |
| Pilot dia | 2.000 |
| Remaining stock | <10 |
| Splines count | 29 |
| Splines dia | 1.276 |
| Through hole | 1.500 |
