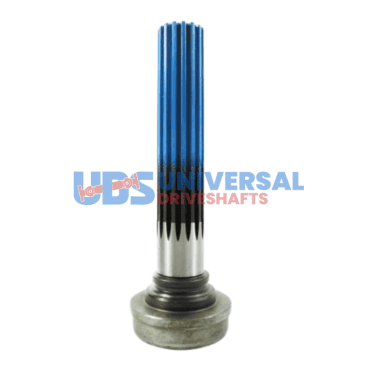

2-53-501 Splined Midship Tube Shaft 1.375×16 spline, Ø3.000 X .083 tube
$47.76
+50 in stock
Description
The 2-53-501 Stub & Midship Shaft is engineered for optimal torque transmission in driveline applications. With a tube diameter of 3.000 inches and a robust wall thickness of 0.083 inches, this shaft is designed to handle significant loads while maintaining structural integrity. The 16 x 1.500 splines ensure a precise fit with compatible slip yokes, allowing for smooth operation and effective power transfer.
Measuring 5.406 inches in spline length, the 2-53-501 is tailored to fit specific applications, ensuring that the torque from the transmission is efficiently delivered to the differential. The bearing diameter of 1.378 inches plays a crucial role in maintaining alignment and reducing wear, which is vital for longevity and performance.
When installing the 2-53-501, it’s important to check the phasing marks and ensure that the runout is within acceptable limits to prevent vibrations. Proper torque specifications on the bolts are essential to secure the assembly and maintain operational reliability. If any vibrations are detected during operation, consider balancing the shaft to eliminate potential issues.
- Tube Diameter: 3.000 inches
- Spline Count: 16 x 1.500
- Length of Spline: 5.406 inches
- End to Weld: 8.000 inches
- Bearing Diameter: 1.378 inches
In summary, the 2-53-501 Stub & Midship Shaft is a critical component for any driveline system, ensuring efficient torque transfer and durability in demanding conditions.
| Tube dia |
3.000 |
|---|---|
| Tube wall |
0.083" |
| Butt dia |
2.844 |
| Splines length |
5.406 |
| End to weld |
8.000 |
| Bearing dia |
1.378 |
| Class |
LD |
| Brand |
UDS |
| Partn number |
2-53-501 |
| Style |
Slip |
| Splines count dia |
16 x 1.500 |
