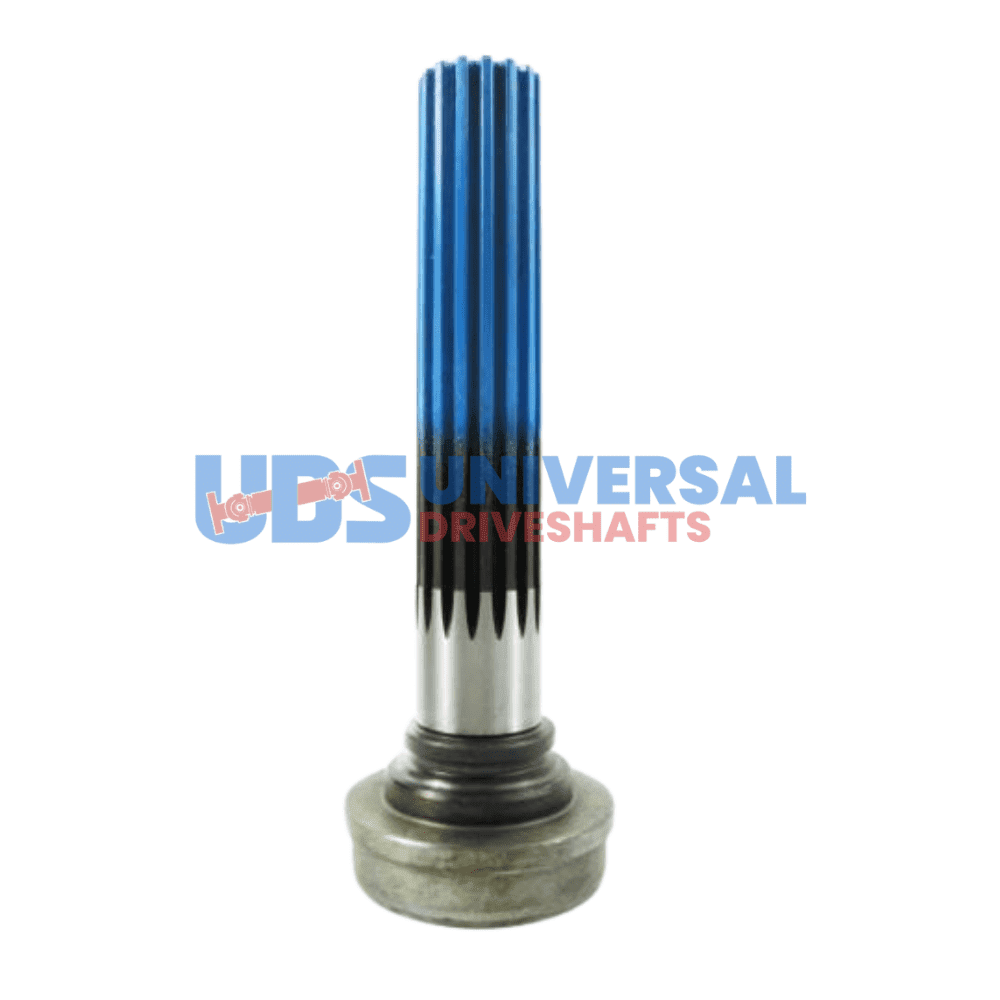

Splined Midship Tube Shaft 1.375×16 spline, Ø3.000 X .083 tube General Design Type For use with Outboard Slip Yokes Spline Major Diameter 1.375 Spline Count 16.000 Spline Type Bearing Diameter 1.378 Tube Diameter and Wall Size 3.000 X .083 End of Spline to Bearing Shoulder 6.938 End of Spline to Point of Weld 8.000 Length of Spline 5.406 Thread Size Shoulder Diameter 1.688 Length of Shoulder 0.812
Brand:
2-53-501 Splined Midship Tube Shaft 1.375×16 spline, Ø3.000 X .083 tube
$44.22
+50 in stock
18
People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders from your dashboard
Description
Additional information
| Tube dia |
3.000 |
|---|---|
| Tube wall |
0.083" |
| Butt dia |
2.844 |
| Splines count |
16 |
| Splines dia |
1.375 |
| Splines length |
5.406 |
| End to weld |
8.000 |
| Bearing dia |
1.378 |
| Class |
LD |
| Brand |
UDS |
| Partn number |
2-53-501 |
