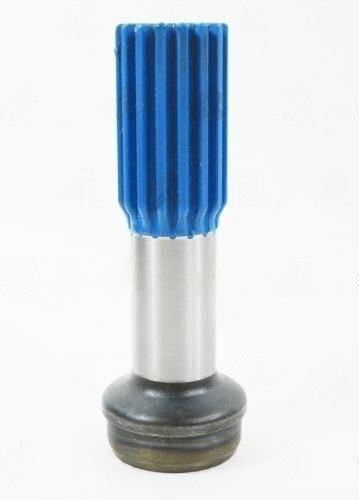

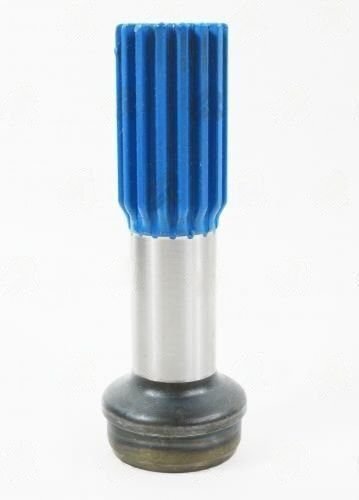

2-40-971 – Stub & Midship Shaft – 10 x 1.375 Splines – Butt Dia 1.625″ – Tube Dia 1.750
$47.27
Description
The 2-40-971 Stub & Midship Shaft is engineered for optimal performance in demanding driveline applications. With a unique configuration of 10 x 1.375 splines, this component is designed to fit a 1.750″ tube with a wall thickness of 0.065″. The butt diameter measures 1.625″, making it a precise fit for various setups. The slip style allows for easy installation and adjustment, ensuring that you can tailor it to your specific needs.
What sets the 2-40-971 apart from similar shafts is its attention to detail in spline design and dimensions. The 2.000″ spline length provides ample engagement, which is crucial for maintaining torque transfer without slippage. If you were to use a shaft with a different spline count or diameter, you risk improper fitment, leading to vibrations and potential failure in the driveline.
- Verify spline count and dimensions before installation.
- Ensure the butt diameter matches your existing components.
- Check the tube wall thickness for compatibility.
- Install with proper phasing to avoid vibration issues.
- Torque bolts to manufacturer specifications for secure attachment.
In summary, the 2-40-971 Stub & Midship Shaft is a critical component for effective torque transmission and vibration control in your driveline system. Its specific dimensions and design make it an essential choice for technicians and builders looking for reliability and performance.
| Butt dia | 1.625 |
|---|---|
| End to weld | 4.469 |
| Partn number | 2-40-971 |
| Remaining stock | <10 |
| Splines count dia | 10 x 1.375 |
| Splines length | 2.000 |
| Tube dia | 1.750" |
| Tube wall | 0.065" |
| Style | Slip |
