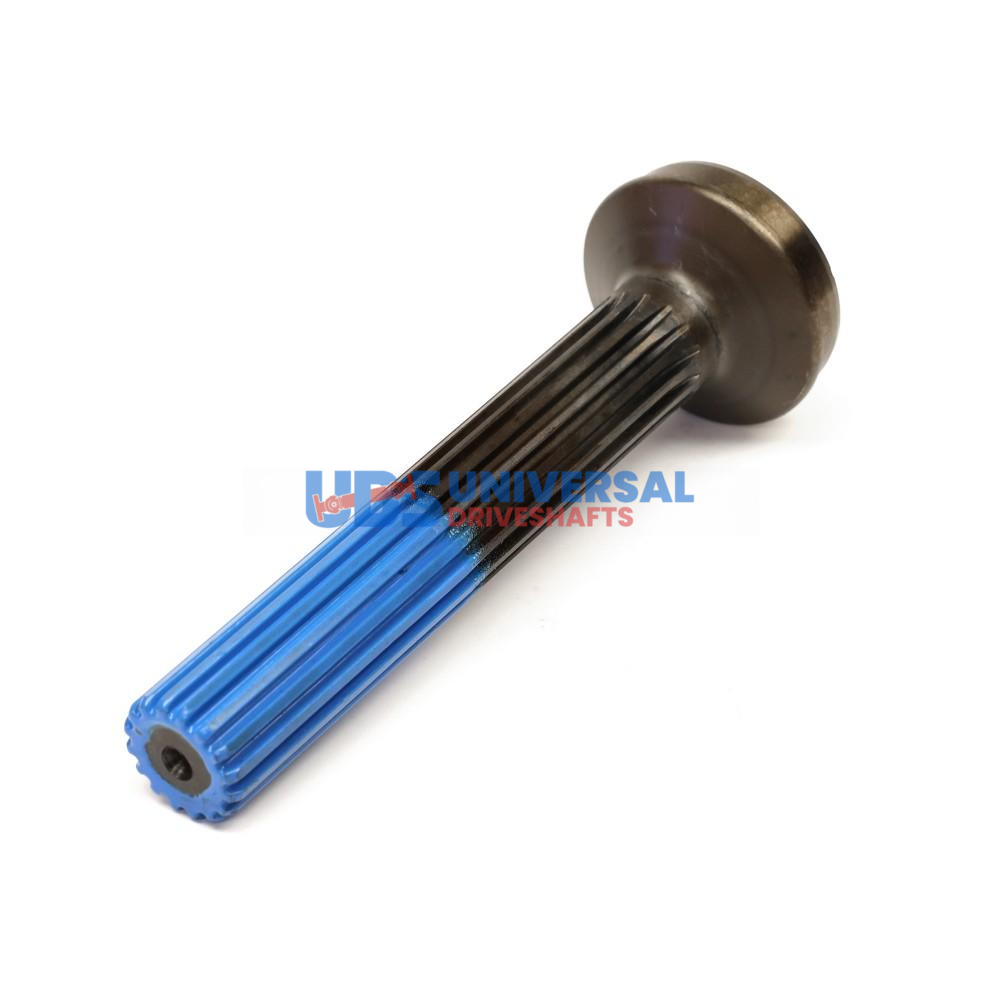

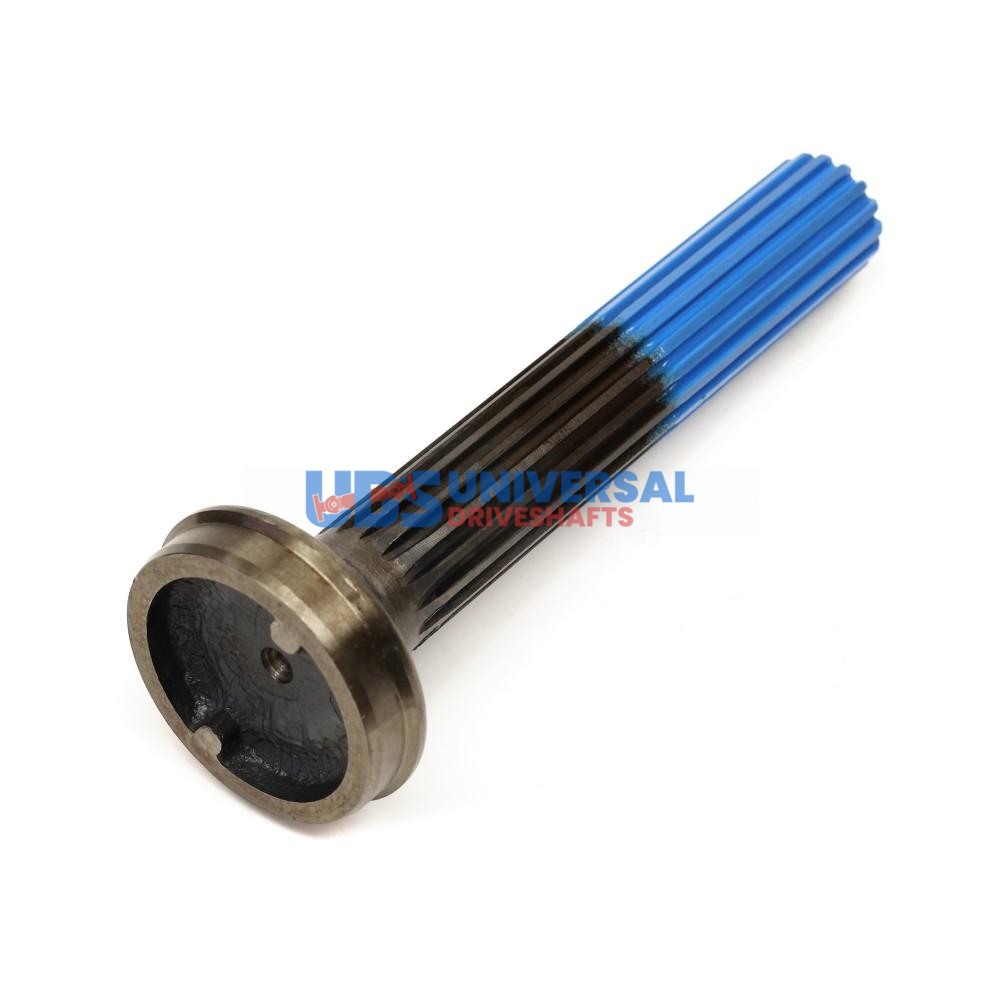

2-40-1871 – Stub & Midship Shaft – 16 x 1.250 Splines – Butt Dia 2.844″ – Tube Dia 3.000
$50.36
Description
2-40-1871 is a Stub & Midship Shaft designed to deliver reliable torque transmission in various driveline applications. With its 16 x 1.250 splines, this shaft fits seamlessly into systems that require precise alignment and strength. The overall length of 8.641 inches and a tube diameter of 3.000 inches make it suitable for a range of vehicles and equipment.
In many performance builds and fleet applications, the Stub & Midship Shaft plays a crucial role in connecting the transmission to the differential. The slip style design allows for necessary movement while maintaining a solid connection, which is vital in high-torque scenarios. The robust construction, featuring a tube wall thickness of 0.083 inches, ensures durability under demanding conditions.
- Verify the spline count and diameter match your application.
- Ensure the butt diameter of 2.844 inches fits the yoke or flange properly.
- Check the runout and balance the assembly if vibration occurs.
- Torque all fasteners to the manufacturer’s specifications for optimal performance.
- Inspect mating components to ensure they work as a system.
When installing the 2-40-1871 Stub & Midship Shaft, always pay attention to phasing marks to maintain proper alignment. This attention to detail will help prevent premature wear and potential failures in your driveline system. Trust the 2-40-1871 for your next project and experience the difference in performance.
| Butt dia |
2.844 |
|---|---|
| End to weld |
8.641 |
| Partn number |
2-40-1871 |
| Remaining stock |
<10 |
| Splines count dia |
16 x 1.250 |
| Splines length |
6.781 |
| Tube dia |
3.000 |
| Tube wall |
0.083" |
| Style |
Slip |
More Parts from the same Category
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stub & Midship Shaft (170) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Remaining stock '+10 Partn number 1253-242 Butt dia 1.875 Splines count dia 24 x 0.995 End to weld 2.875 Style FIXED Notes use is with : 1204-241 nut sold sepratly: 858018 Tube dia 2.000 Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.375 End to weld 3.125 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-261 Remaining stock >10 Splines count dia 26 x 1.115 Splines length 1.120 Tube dia 2.500 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 1.875 End to weld 2.875 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-262 Remaining stock >10 Splines count dia 26 x 1.115 Splines length 1.180 Tube dia 2.000 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.375 End to weld 6.625 Notes This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682 Partn number 1254-681 Remaining stock >10 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Style CVJ Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.344 End to weld 6.625 Notes use it with: 2252-682 Partn number 1254-683 Remaining stock <10 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Tube wall 0.083" Style CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 7.500 Notes TOYOTA Partn number 1340-20 Remaining stock <10 Splines count dia 20 X 1.310 Splines length 1.765 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 9.375 Notes Toyota, Sold only in kit 1343-20L Partn number 1340-20L Remaining stock <10 Splines count dia 20 X 1.310 Splines length 6.500 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 6.375 Notes TOYOTA Partn number 1340-21 Remaining stock >10 Splines count dia 20 X 1.310 Splines length 1.880 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.435 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-231 Remaining stock >10 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.560 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.344 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-232 Remaining stock >10 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.500 Tube wall 0.083" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
