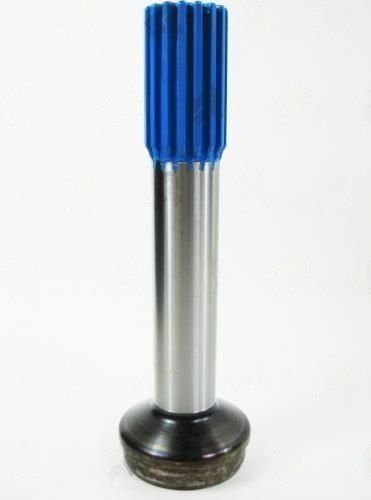

2-40-1851 – Stub & Midship Shaft – 16 X 1.375 Splines – Butt Dia 2.344″ – End To Weld 7.531
$43.89
Description
The 2-40-1851 Stub & Midship Shaft is engineered for optimal torque transmission in driveline applications. With a length of 7.531 inches and a robust 2.500″ tube diameter, this component is built to handle demanding conditions. The 16 X 1.375 splines ensure a secure fit to the transmission output or transfer case, making it essential for reliable performance.
This shaft’s design addresses critical speed limits, as the tube diameter and wall thickness are optimized to reduce vibration and increase durability. The 0.083″ wall thickness strikes a balance between weight and strength, ensuring it can withstand the torque loads typical in high-performance and heavy-duty applications.
When installing the 2-40-1851, keep the following in mind:
- Verify spline count and ensure compatibility with the mating components.
- Check the runout to prevent vibration issues during operation.
- Torque all bolts to the manufacturer’s specifications for a secure connection.
- Inspect phasing marks to maintain proper alignment.
In summary, the 2-40-1851 Stub & Midship Shaft is a critical component designed for strength, precision, and reliability in various driveline configurations. Its engineering ensures it meets the demands of both performance builders and fleet technicians alike.
| Butt dia |
2.344 |
|---|---|
| End to weld |
7.531 |
| Partn number |
2-40-1851 |
| Remaining stock |
>10 |
| Splines count dia |
16 X 1.375 |
| Splines length |
2.250 |
| Tube dia |
2.500 |
| Tube wall |
0.083" |
| Style |
Slip |
