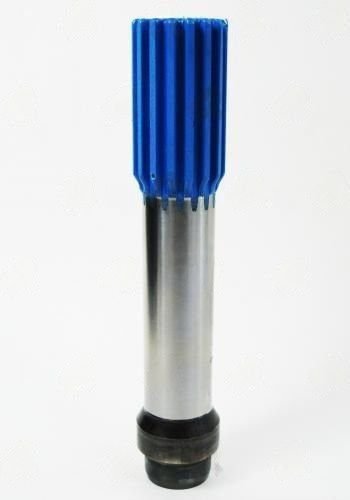

2-40-1771 – Stub & Midship Shaft – 16 x 1.250 Splines – Butt Dia 1.000″ – Tube Dia 1.250
$38.31
Description
When working with the 2-40-1771 Stub & Midship Shaft, it’s crucial to ensure that your installation is precise. This component features a 1.250″ diameter tube with a wall thickness of 0.120″ and a spline configuration of 16 x 1.250. The spline length measures 1.906 inches, and the end-to-weld distance is 1.250 inches. These specifications are critical for maintaining torque stability and load transfer in your driveline setup.
Before installation, double-check the spline count and ensure it matches your transmission output. A common pitfall is mismatching spline sizes, which can lead to failure or poor performance. Make sure to verify the phasing marks on the yoke and check for any runout before final assembly. Proper torque on the fasteners is essential; always refer to the manufacturer’s specifications for the correct torque settings.
- Check spline count: 16 x 1.250 for compatibility.
- Ensure tube diameter of 1.250″ fits your application.
- Verify wall thickness of 0.120″ for load-bearing capacity.
- Inspect for proper phasing before installation.
- Torque bolts to specification to prevent loosening.
Using the 2-40-1771 Stub & Midship Shaft correctly will ensure reliable performance in your driveline system. Pay attention to these details to avoid common installation errors and achieve optimal results.
| Butt dia | 1.000 |
|---|---|
| End to weld | 1.250 |
| Partn number | 2-40-1771 |
| Remaining stock | <10 |
| Splines length | 1.906 |
| Splines count dia | 16 x 1.250 |
| Tube dia | 1.250 |
| Tube wall | 0.120 |
| Style | Slip |
