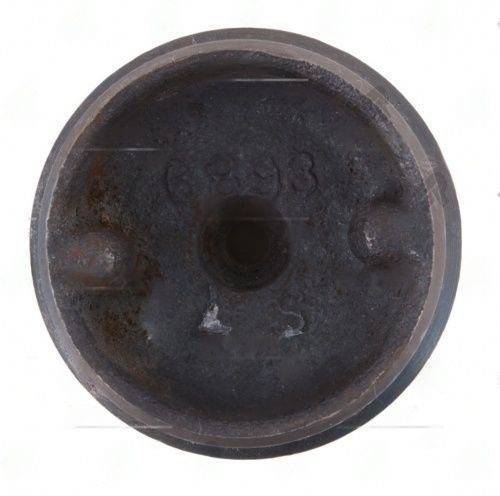

2-40-1741 – Stub & Midship Shaft – 16 x 1.250 Splines – Butt Dia 1.844″ – Tube Dia 2.000
$42.12
Description
The 2-40-1741 Stub & Midship Shaft is engineered to deliver exceptional performance in demanding applications. With a spline configuration of 16 x 1.250, this shaft ensures a robust connection between your transmission and differential. The 1.844″ butt diameter and 2.000″ tube diameter provide the necessary strength and durability, while the slip style allows for easy installation and adjustment.
One of the key features of the 2-40-1741 is its 2.000″ spline length, which is critical for maintaining proper phasing and alignment within the driveline. If you attempt to use a similar shaft with a different spline count or length, you risk misalignment, which can lead to vibration and premature wear on your components. The 0.083″ tube wall thickness adds to the overall strength, ensuring that this shaft can handle the torque demands of high-performance applications.
- Verify the spline count and diameter match your transmission output.
- Ensure the butt diameter is compatible with your existing components.
- Check the tube wall thickness for added durability.
- Inspect the installation for proper phasing to avoid vibrations.
- Torque all fasteners to the manufacturer’s specifications for optimal performance.
In summary, the 2-40-1741 Stub & Midship Shaft is a vital component for any driveline setup, providing the reliability and performance you need for both everyday driving and high-performance applications.
| Butt dia |
1.844 |
|---|---|
| End to weld |
6.000 |
| Partn number |
2-40-1741 |
| Remaining stock |
<10 |
| Splines count dia |
16 x 1.250 |
| Splines length |
2.000 |
| Tube dia |
2.000 |
| Style |
Slip |
| Tube wall |
0.083" |
More Parts from the same Category
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stub & Midship Shaft (170) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Remaining stock '+10 Partn number 1253-242 Butt dia 1.875 Splines count dia 24 x 0.995 End to weld 2.875 Style FIXED Notes use is with : 1204-241 nut sold sepratly: 858018 Tube dia 2.000 Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.375 End to weld 3.125 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-261 Remaining stock >10 Splines count dia 26 x 1.115 Splines length 1.120 Tube dia 2.500 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 1.875 End to weld 2.875 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-262 Remaining stock >10 Splines count dia 26 x 1.115 Splines length 1.180 Tube dia 2.000 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.375 End to weld 6.625 Notes This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682 Partn number 1254-681 Remaining stock >10 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Style CVJ Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.344 End to weld 6.625 Notes use it with: 2252-682 Partn number 1254-683 Remaining stock <10 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Tube wall 0.083" Style CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 7.500 Notes TOYOTA Partn number 1340-20 Remaining stock <10 Splines count dia 20 X 1.310 Splines length 1.765 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 9.375 Notes Toyota, Sold only in kit 1343-20L Partn number 1340-20L Remaining stock <10 Splines count dia 20 X 1.310 Splines length 6.500 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 6.375 Notes TOYOTA Partn number 1340-21 Remaining stock >10 Splines count dia 20 X 1.310 Splines length 1.880 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.435 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-231 Remaining stock >10 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.560 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.344 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-232 Remaining stock >10 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.500 Tube wall 0.083" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
