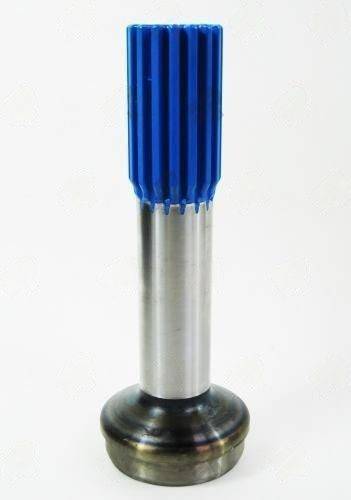

2-40-1711 Stub Shaft Splines: 1.375 x 16 Fits 2.500 x 0.095 End to Weld: 5.125″
$29.48
+50 in stock
Description
The 2-40-1711 Stub & Midship Shaft is engineered for precision and reliability in demanding driveline applications. With 16 X 1.375 splines, this component is designed to fit seamlessly into systems requiring robust torque transmission. The tube diameter measures 2.500 inches, and the wall thickness of 0.083 inches provides the necessary strength while keeping weight in check.
Installation of the 2-40-1711 requires careful attention to detail. Ensure that the spline count matches your application and verify that the end-to-weld measurement of 5.125 inches is correct for your setup. The slip style of this shaft allows for some axial movement, which is crucial in certain applications where drivetrain flex is present.
- Butt Diameter: 2.344 inches
- Splines Length: 2.250 inches
- Tube Wall Thickness: 0.083 inches
- Style: Slip for axial movement
- Installation Tip: Always check for proper phasing and torque specifications during installation.
In high-performance or heavy-duty applications, the 2-40-1711 Stub & Midship Shaft plays a vital role in maintaining driveline integrity. Its design ensures that it can handle the stresses encountered during operation, making it a reliable choice for fabricators and fleet technicians alike. Trust the 2-40-1711 for your next driveline project.
| Butt dia |
2.344 |
|---|---|
| End to weld |
5.125" |
| Partn number |
2-40-1711 |
| Remaining stock |
>10 |
| Splines count dia |
16 X 1.375 |
| Splines length |
2.250 |
| Tube dia |
2.500 |
| Style |
Slip |
| Tube wall |
0.083" |
