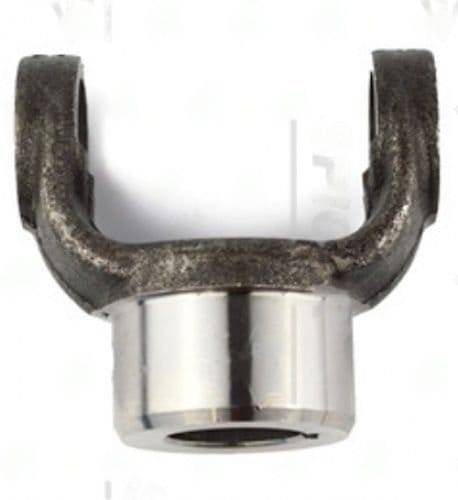

2-4-503 End Yoke – Round Bore 1310 series, Bore: 1.125 , Keyway: 0.25 , Hub: 2.125 diameter

When you’re working with the 2-4-503 End Yoke, it’s crucial to ensure a proper fit for your 1310 Series application. This yoke features a 1.125-inch round bore, making it compatible with a range of driveline setups. Before installation, double-check the spline engagement depth and ensure that the spline count matches your driveshaft. A common oversight is mismatching spline sizes, which can lead to premature wear or failure.

The hub diameter measures 2.00 inches, and the centerline-to-end measurement is 2.56 inches. These dimensions are critical for achieving the right alignment and function. The EAR-0.25 keyway provides added stability during operation, while the 1.62-inch through hole allows for secure attachment to your driveline components.

Here are some installation tips to keep in mind:

• Verify spline count and ensure it matches your driveshaft.
• Check the hub diameter for proper fitment.
• Inspect the keyway for any signs of wear before installation.
• Ensure the through hole is clean and free of debris.
• Align the yoke correctly to avoid phasing issues with the opposite yoke.

By following these guidelines, you can ensure that the 2-4-503 End Yoke will perform reliably in your application. Remember, proper installation is key to maximizing the lifespan of your driveline components. Trust the precision of the 2-4-503 for your next project.
