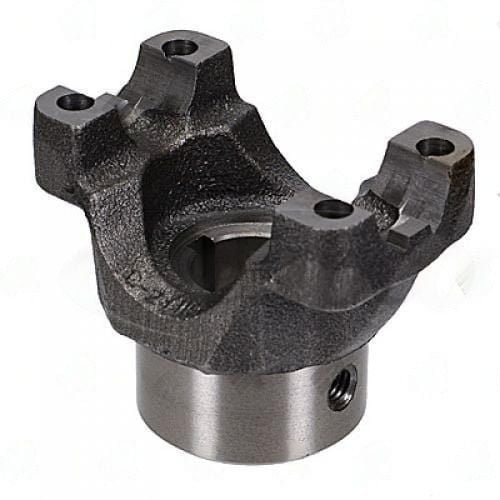

2-4-0782 – End Yoke – 1310HR Series – 1.125″ Bore Dia – 2.12″ Hub Dia

2-4-0782 is an End Yoke that plays a crucial role in connecting the driveshaft to the powertrain or axle assembly. This yoke is specifically designed for 1310HR applications, ensuring a robust interface for torque transfer. Key specifications include a 1.125″ bore diameter and a 2.12″ hub diameter, both of which are critical for achieving proper fitment and performance.

The 2.94″ distance from the center of the joint to the end of the yoke allows for optimal alignment and engagement with mating components. Additionally, the round bore type and the EAR-0.25 keyway ensure secure attachment and prevent rotational slippage during operation. The through hole measures 1.50″, providing ample clearance for fastening hardware.

• Verify spline engagement depth before installation.
• Check that the spline count and diameter match your application.
• Ensure proper phasing with the opposite yoke to avoid driveline vibrations.
• Use appropriate torque specifications for fastening to companion flanges.
• Inspect the yoke for wear or damage before installation.

When working with the 2-4-0782, always confirm that the yoke’s specifications align with your driveline setup. Mismatched components can lead to assembly issues and potential failure. This yoke is engineered to handle the demands of high-torque applications while maintaining reliability and performance.
