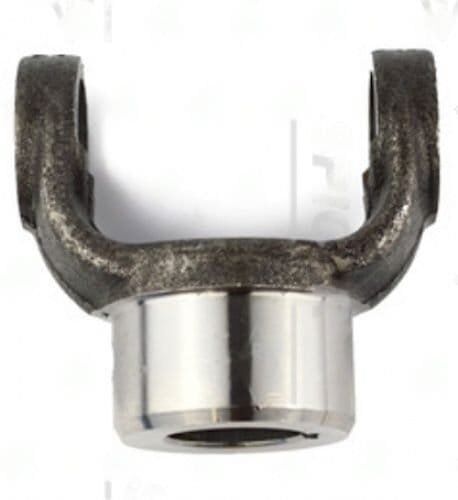

2-4-503 End Yoke – Round Bore 1310 series, Bore: 1.125 , Keyway: 0.25 , Hub: 2.125 diameter
$23.22
50 in stock
15 People watching this product now!
Description
The 2-4-503 PTO End Yoke is designed for 1310 series applications and features a 1.125-inch round bore, making it a reliable choice for light-duty tasks. With a centerline-to-end measurement of 2.56 inches and a hub diameter of 2.00 inches, this end yoke offers precise fitting and alignment. It includes an EAR keyway measuring 0.25 inches, ensuring stability, along with a 1.62-inch thru-hole for secure attachment. The set screw is positioned at the EAR, with a size of 0.62 inches, providing additional security. Trusted by Spicer, this end yoke is built for durability and efficient power transfer, tailored for light-duty, round-bore applications.
Additional information
| Bore type | round |
|---|---|
| Cj to end | 2.56 |
| Hub dia | 2.00 |
| Keyway | EAR-0.25 |
| Partn number | 2-4-503 |
| Remaining stock | <10 |
| Series | 1310 |
| Through hole | 1.62 |
| Bore dia | 1.125 |
