2-3-7681KX Slip Yoke 1330 Series, Splines: 1.375×15/16 , Centerline To End: 6.625
$43.43
+50 in stock
13 People watching this product now!
Description

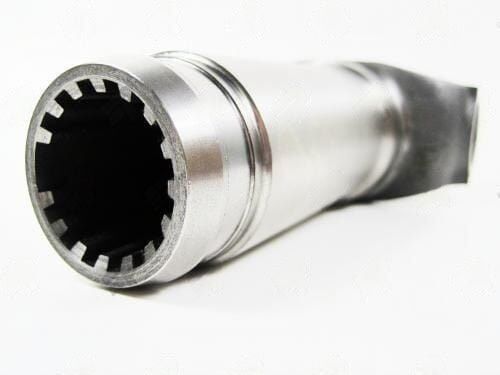

The 2-3-7681KX Slip Yoke, part of the 1330 Series, is engineered for robust driveline performance. It features a U-joint width of 3.625 inches and a U-joint cap diameter of 1.062 inches. The center line to the end of the spline is 6.625 inches, and the center line to the face of the plug is 1.000 inch. It has a spline outside diameter of 1.375 inches and includes 16 splines (15 functional and 1 blind spot). Supporting a joint angle of 35 degrees, this slip yoke is greasable and includes a dust cap for enhanced protection. Weighing 3.75 lbs, it is built for durability in demanding applications.
Additional information
| Center u joint to end | 6.625 |
|---|---|
| Partn number | 2-3-7681KX |
| Remaining stock | <10 |
| Series | 1330 |
| Splines count | 15/16 |
| Splines dia | 1.375 |
