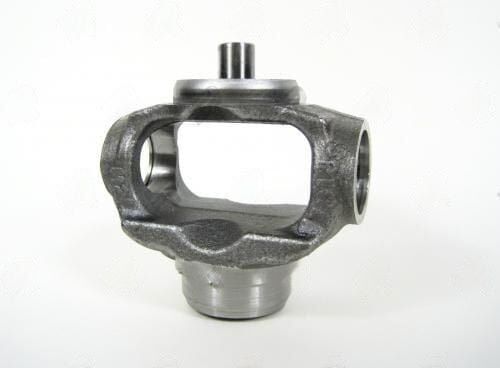

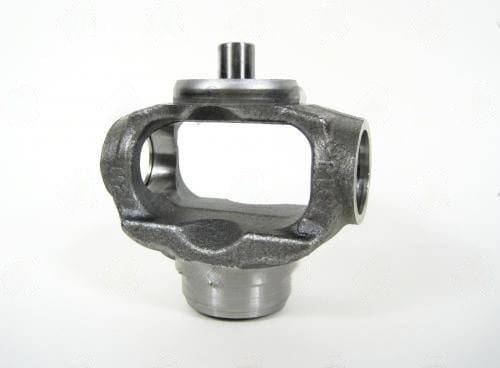

2-28-2937 – Ball Stud Yokes – 1310 Series – Ball Stud Length Dia 0.500X0.594 – Butt Dia 1.562

When working with the 2-28-2937 Ball Stud Yoke, it’s essential to understand its role in connecting the driveshaft to the transmission or differential. This yoke is specifically designed for 1310 Series applications, featuring a ball stud length diameter of 0.500X0.594 and a butt diameter of 1.562 inches. Before installation, always verify that the spline count matches your existing setup to avoid compatibility issues.

One common mistake techs make is overlooking the center U-joint to weld measurement, which is 1.438 inches for this yoke. Ensuring proper alignment during installation is critical; a misaligned yoke can lead to premature wear or failure. Additionally, the tube diameter wall is 1.750X0.095, so make sure your tubing matches this specification to maintain structural integrity.

• Check spline engagement depth before sliding the yoke onto the shaft.
• Verify that the U-joint is phased correctly with the opposite yoke.
• Inspect the dust cover rubber for any signs of wear or damage before installation.
• Use appropriate torque specifications when fastening to the companion flange.
• Always ensure the yoke is seated properly to prevent vibrations.

With the right attention to detail, the 2-28-2937 yoke will provide reliable performance in your driveline system. Remember, proper installation is key to maximizing the lifespan of this component.
