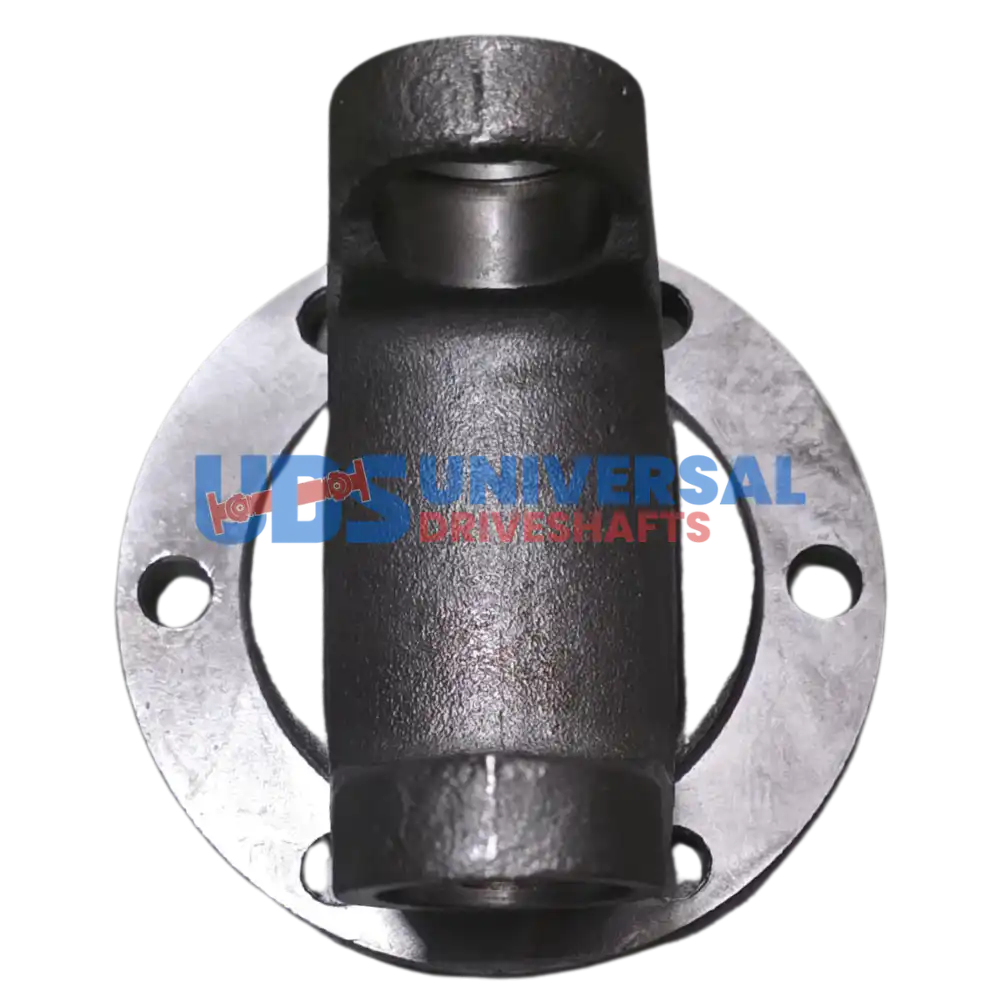

The 2-2-1339 Flange Yoke is a crucial component for any driveline setup utilizing the 1310 Series. This yoke connects the driveshaft to the transmission or differential, ensuring a robust and reliable link. With a bolt circle diameter of 3.307 inches and a female pilot diameter of 2.244 inches, it’s engineered for precision fitment. The six bolt holes, each with a diameter of 0.345 inches, allow for a secure attachment to the companion flange.
One of the standout features of the 2-2-1339 is its flange face to centerline distance of 1.968 inches, which is essential for maintaining proper alignment within the driveline. This yoke can handle a joint angle of up to 20 degrees, making it suitable for various applications, particularly in performance and off-road vehicles where articulation is necessary.
When installing the 2-2-1339, keep these tips in mind:
- Ensure proper spline engagement depth.
- Check phasing with the opposite yoke to prevent vibrations.
- Do not force spline entry; it should slide in smoothly.
In summary, the 2-2-1339 Flange Yoke is designed for durability and performance, making it an essential choice for those looking to maintain or upgrade their driveline systems.
