2-2-1050 – Flange Yokes – 1210 Series – Bolt Circle Dia 3.937″ – Pilot Dia 2.874-F

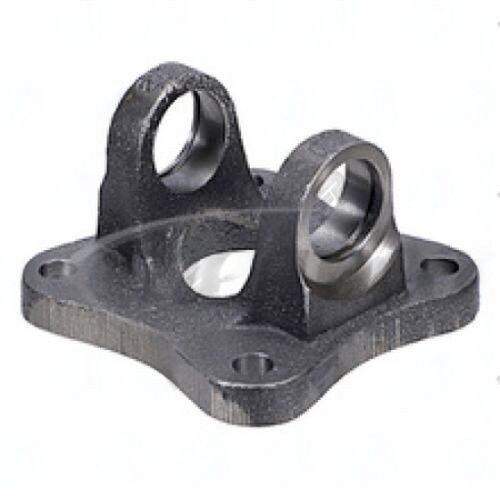

2-2-1050 is a Flange Yoke that fits the 1210 Series, crucial for connecting your driveshaft to the transmission or differential. Before installation, ensure you check the spline engagement depth and verify the phasing with the opposite yoke. A common mistake is forcing the spline into the yoke, which can lead to damage. This yoke features a bolt circle diameter of 3.937 inches and a pilot diameter of 2.874 inches, making it compatible with a variety of applications.

When installing, pay attention to the following:

• Check the bolt hole diameter of 0.393 inches and ensure it matches your companion flange.
• Verify that the yoke has four bolt holes for secure attachment.
• Measure the distance from the center of the yoke to the flat (Cj to flat) at 1.625 inches to ensure proper alignment.

Remember, the 2-2-1050 Flange Yoke is designed to handle the rigors of driveline operation, so proper installation is key to longevity. Always torque the fasteners to the manufacturer’s specifications to avoid any issues down the line. With the right attention to detail, this yoke will provide a reliable connection for your driveline needs.
