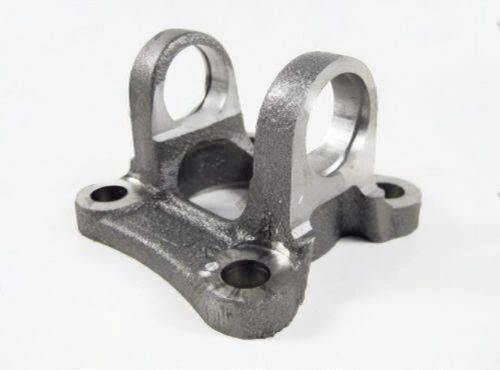

2-2-1049 – Flange Yokes – 1210 Series – Bolt Circle Dia 3.500" – Pilot Dia 2.000-F - Image 1

Click to enlarge

2-2-1049 – Flange Yokes – 1210 Series – Bolt Circle Dia 3.500″ – Pilot Dia 2.000-F

SKU: 2-2-1049

$37.40

10 in stock

16 People watching this product now!

Description

The 2-2-1049 Flange Yoke is a 1210 series component designed for secure driveshaft connections. It features a female pilot diameter of 2.000 inches and a bolt circle diameter of 3.500 inches. The yoke includes four bolt holes, each with a diameter of 0.490 inches. It has an outside snap ring design and supports a cap width of 2.438 inches with a cap diameter of 1.063 inches. The flange face to centerline distance is 1.62 inches, and it accommodates a joint angle of 20 degrees.

Additional information

Bolt circle dia	3.500
Bolt hole dia	0.484
Cj to flat	1.625
Partn number	2-2-1049
Pilot dia	2.000-F
Series	1210
Bolt Holes	4
