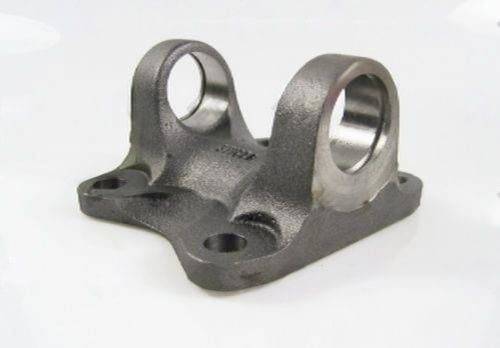

2-2-479 Flange Yoke 1310 series , 4x 0.438 Holes on 3.750 Bolt Circle Diameter , 2.750M pilot

Before you dive into installing the 2-2-479 Flange Yoke, it’s crucial to understand its specifications and how they impact your driveline setup. This yoke belongs to the 1310 Series, which is widely used in various automotive applications. It features a 3.750″ bolt circle diameter, four bolt holes with a diameter of 0.438″, and a male pilot diameter of 2.750″. These dimensions are critical for ensuring a proper fit with your transmission or differential.

When installing, always check the spline engagement depth to ensure a secure connection. A common mistake is mismatching the spline count; verify that the yoke aligns with the output shaft’s specifications. Additionally, make sure to confirm the phasing with the opposite yoke to avoid vibrations during operation.

• Check the spline count before installation.
• Ensure proper alignment with the output shaft.
• Verify bolt hole alignment with the companion flange.
• Torque fasteners to the manufacturer’s specifications.
• Inspect the mating components for wear or damage.

The 2-2-479 yoke is designed to handle the torque transfer efficiently, making it a reliable choice for performance builds and fleet applications alike. Remember, proper installation is key to maximizing the lifespan and performance of your driveline components. With its robust design and specific dimensions, the 2-2-479 Flange Yoke is an essential part of your driveline system.
