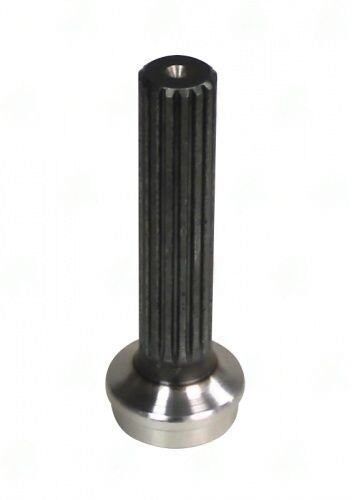

1740-16 – Stub & Midship Shaft – 16 X 1.063 Splines – Butt Dia 1.844″ – Tube Dia Wall 2.000X0.083

The 1740-16 Stub & Midship Shaft is a critical component for effective torque transmission in various driveline applications. Designed with 16 X 1.063 splines, this shaft ensures a secure connection between the transmission and differential, allowing for efficient power transfer. The butt diameter of 1.844″ and a tube diameter wall of 2.000X0.083 provide the necessary strength and rigidity to handle demanding conditions.

This shaft measures 4.255″ in spline length and has an end-to-weld measurement of 5.250″, making it essential for applications where precise fitment is crucial. In driveline assemblies, any misalignment or incorrect length can lead to vibration issues or premature wear, so it’s vital to ensure that the 1740-16 matches the specific requirements of your vehicle or equipment.

• Verify spline count and diameter for compatibility.
• Check the end-to-weld measurement for accurate installation.
• Inspect the tube diameter and wall thickness to ensure it meets application standards.
• Balance the assembly if vibration occurs after installation.
• Always torque bolts to the manufacturer’s specifications for optimal performance.

Whether you’re working on a performance build or maintaining a fleet vehicle, the 1740-16 Stub & Midship Shaft is engineered to deliver reliability and efficiency in your driveline system.
