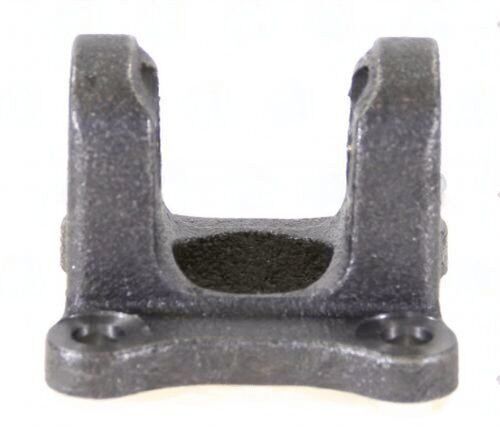

1702-34 – Flange Yokes – 1751 Series – Bolt Circle Dia 3.346″ – Pilot Dia 1.772, M

SKU: 1702-34

$54.06

3 in stock

15 People watching this product now!

Description

The Flange Yoke 1702-34 is designed for driveline applications in Suzuki, Colt Vista, Talon, Eclipse, and Ram 50 series vehicles. It features a snap ring design with a universal joint series specification. This yoke has a universal joint retaining width of 2.517 inches and a bearing diameter of 0.985 inches. The bolt circle diameter is 3.346 inches, with the pilot diameter measuring 1.772 inches (male). It includes x0 tapped holes on the bolt circle. The distance from the centerline of the joint to the flange face is 1.562 inches, ensuring precise fit and functionality.

Additional information

Bolt circle dia	3.346
Bolt hole dia	0.400
Cj to flat	1.562
Partn number	1702-34
Pilot dia	1.772 , M
Series	1751
Bolt Holes	4
