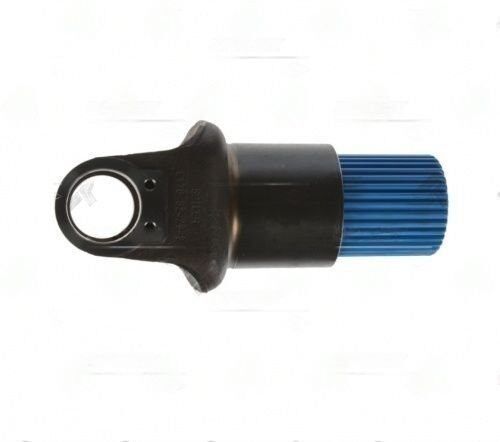

The 170-82-191X Yoke Shaft from the SPL170 series is designed for high performance and durability in demanding industrial applications. It features a major spline diameter of 3.425 inches and a spline count of 34, providing a secure and reliable connection. The centerline to the end of the spline measures 11.062 inches, while the end/spline-to-point radius is 7.500 inches, ensuring effective engagement and functionality. With a spline length of 1.000 inch and a centerline to the end of the can/tube also measuring 7.500 inches, this yoke shaft is built for precision. Classified under VMRS code 024002061 and designed in Type I, Style 1, this yoke shaft is an excellent choice for robust power transmission systems.
170-82-191X
$293.08
18
People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders
Description
Additional information
| Weight | 4.5 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| Boot cap part |
100-30-2-84M |
| C l to end |
11.062 |
| Notes |
Dana Spicer |
| Partn number |
170-82-191X |
| Remaining stock |
10+ |
| Series |
SPL170 |
| Splines count |
34 |
| Splines dia |
3.464 |
| Splines length |
7.500 |
