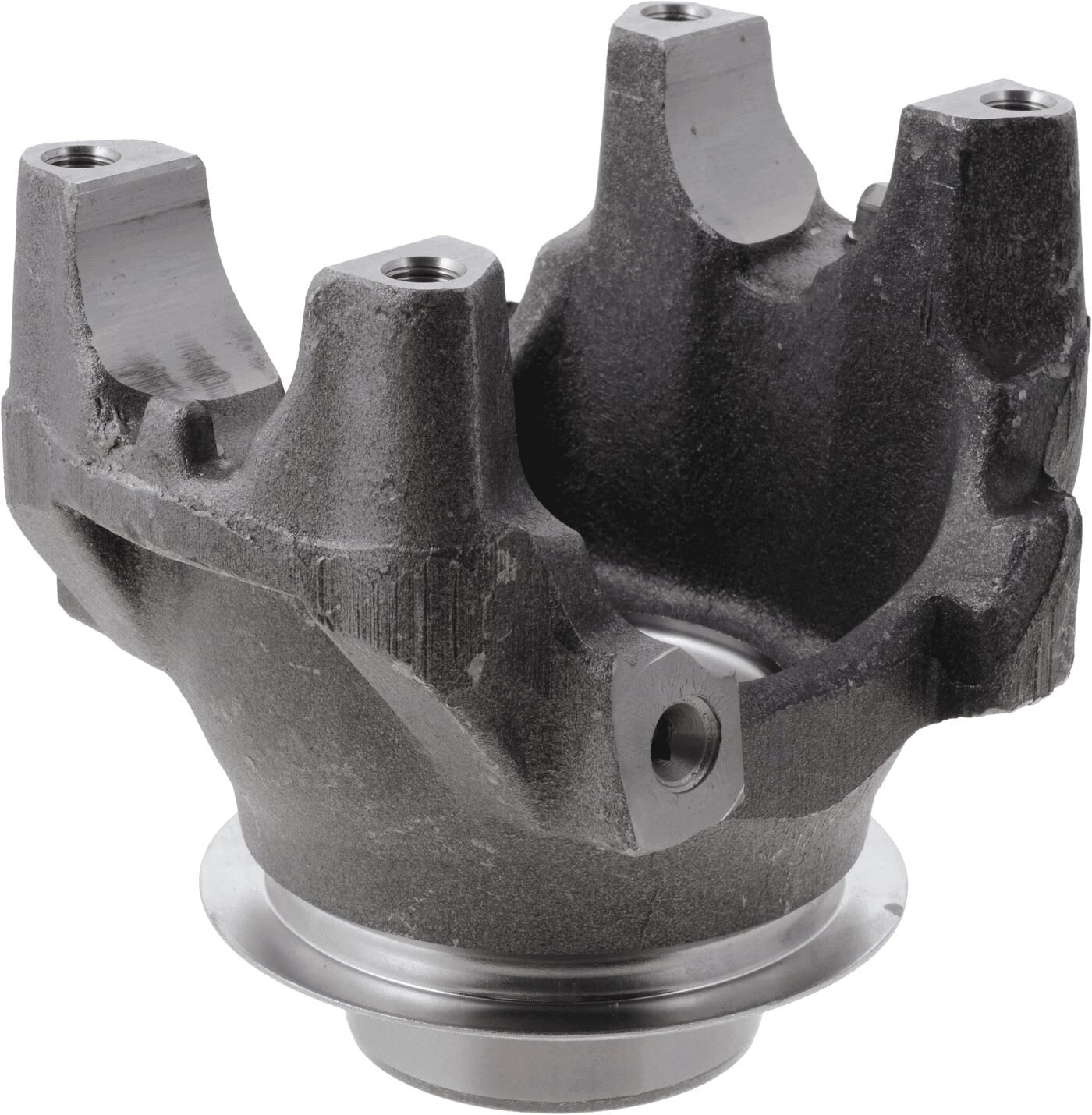

170-4-281-1 – End Yoke – SPL170 Series – 2.024″ Splines Dia – 3.000″ Hub Dia
$243.00
1 in stock
Description
When you’re ready to install the 170-4-281-1 End Yoke, make sure to check the spline count and diameter first. This yoke connects the driveshaft to the powertrain or axle assembly, and it’s crucial that you have the correct fit. With a spline diameter of 2.024″ and a total of 39 splines, this yoke is designed specifically for SPL170 Series applications.
Before sliding this yoke onto the shaft, verify the spline engagement depth. A common mistake is attempting to force a spline into a mismatched bore, which can lead to damage. The hub diameter measures 3.000″, and the Cj to end length is 6.240″. These dimensions are critical for ensuring proper alignment and function.
- Check spline count: 39 splines
- Confirm spline diameter: 2.024″
- Verify hub diameter: 3.000″
- Ensure Cj to end length: 6.240″
- Use the correct style: BS
Also, remember to inspect the mating components as a system. If you’re replacing an old yoke, look for wear signs on the U-joint and ensure that the phasing with the opposite yoke is correct. Proper installation of the 170-4-281-1 will ensure reliable torque transfer and longevity in your driveline system.
| Cj to end |
6.240" |
|---|---|
| Hub dia |
3.000" |
| Partn number |
170-4-281-1 |
| Series |
SPL170 |
| Splines count |
39 |
| Splines dia |
2.024 |
| Style |
BS |
| Through hole |
2.281 |
