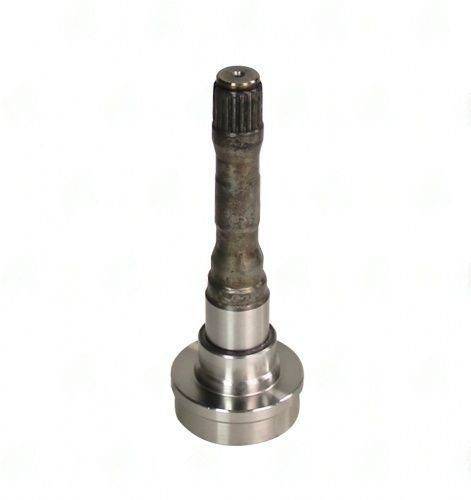

1654-681 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.375″ – Tube Dia 2.500
$40.02
Description
When you encounter a vehicle that shakes or vibrates during acceleration, it often points to a failing driveshaft component. The 1654-681 Stub & Midship Shaft is engineered to address these issues directly. With its precise dimensions, including a Bearing Diameter of 1.181″ and a Butt Diameter of 2.375″, this shaft is designed for optimal torque transmission and durability.
This shaft features 19 X 0.850 splines, ensuring a secure connection to the transmission or transfer case. The Splines Length of 775″ and End To Weld measurement of 6.500″ are critical for maintaining alignment and phasing, which are essential for smooth operation. If these measurements are off, you could experience vibrations or even premature wear on connected components.
Constructed with a Tube Diameter of 2.500″ and a Tube Wall thickness of 0.065″, the 1654-681 is robust enough to handle high-performance applications. It’s styled as a CVJ, making it suitable for vehicles that require flexibility in their driveline setup.
- Verify spline count and length for compatibility.
- Check runout and balance after installation to avoid vibrations.
- Ensure proper phasing marks are aligned during installation.
In summary, the 1654-681 Stub & Midship Shaft is a reliable solution for restoring performance in your driveline. Always remember to double-check your measurements against the application to ensure a perfect fit.
| Bearing dia |
1.181 |
|---|---|
| Butt dia |
2.375 |
| End to weld |
6.500 |
| Notes |
USED WITH: 2252-682 |
| Partn number |
1654-681 |
| Remaining stock |
>10 |
| Splines count dia |
19 X 0.850 |
| Splines length |
775 |
| Tube dia |
2.500 |
| Tube wall |
0.065" |
| Style |
CVJ |
