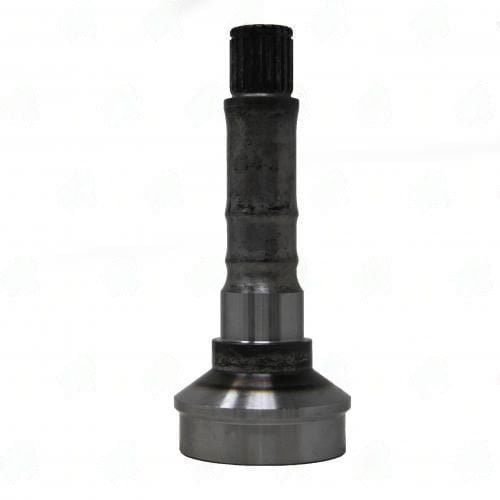

1453-863 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 2.344″ – End To Weld 5.395
$99.64
Description
The 1453-863 Stub & Midship Shaft is specifically engineered for fixed CVJ setups, particularly when paired with the 1426-863 CVJ weld yoke and used with 1452-8602. This configuration is critical for ensuring a robust connection between the transmission and differential, allowing for efficient torque transfer under various load conditions.
With a Bearing Diameter of 1.181″, this shaft provides a secure fit that minimizes play and enhances performance. The Butt Diameter of 2.344″ contributes to the overall strength, ensuring it can withstand the stresses encountered in demanding applications. The End To Weld measurement of 5.395″ is designed to integrate seamlessly into your drivetrain setup, allowing for precise alignment and function.
Key specifications include:
- 21 X 0.900 Splines for effective torque transmission
- Splines Length of 931″ for optimal engagement
- Tube Diameter Wall of 2.500X0.083 for enhanced durability
When installing the 1453-863, ensure that all phasing marks are aligned and that you torque the bolts to the specified settings. This attention to detail is essential to avoid vibrations and ensure longevity of the component. The 1453-863 is not just a part; it’s a vital link in your drivetrain that supports performance and reliability.
| Bearing dia |
1.181 |
|---|---|
| Butt dia |
2.344 |
| End to weld |
5.395 |
| Notes |
fixed cvj set up with 1426-863 cvj weld yoke ,USED WITH: 1452-8602 |
| Partn number |
1453-863 |
| Remaining stock |
<10 |
| Splines count dia |
21 X 0.900 |
| Splines length |
931 |
| Tube dia |
2.000 |
| Tube wall |
0.083" |
| Style |
Slip |
