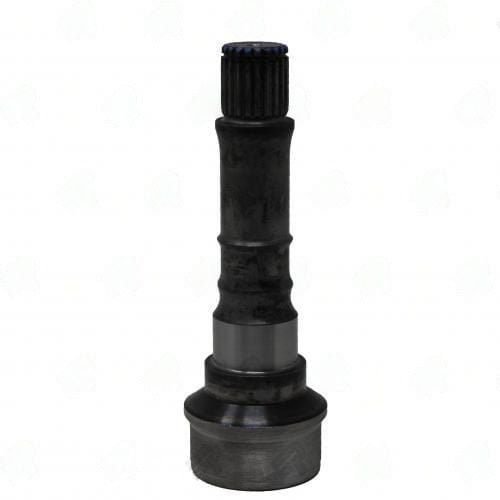

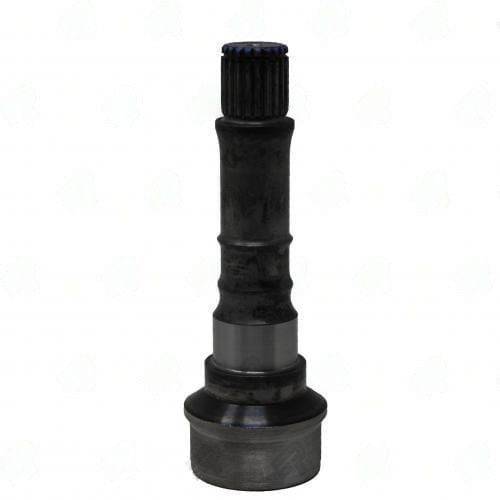

1453-861 – Stub & Midship Shaft – Bearing Dia 1.181″ – Butt Dia 1.844″ – End To Weld 5.395
$91.61
20 People watching this product now!
Description
The 1453-861 Stub & Midship Shaft features a 1.181″ Bearing Dia and 1.844″ Butt Dia, designed for precise fit and performance.
Full Description
1453-861 is a Stub & Midship Shaft that plays a crucial role in transmitting torque from the transmission to the differential. Before installation, double-check the spline count; this shaft has 21 X 0.900 splines, which must match your application precisely. A common oversight is mismatching the spline count, leading to installation headaches. When preparing to install the 1453-861, ensure that the Bearing Diameter of 1.181" and Butt Diameter of 1.844" fit your vehicle's specifications. The End To Weld measurement of 5.395" is critical for proper alignment and fitment, so measure twice before cutting or welding. The tube wall thickness of 0.083" provides the necessary strength while keeping the weight manageable. Here are some installation tips:
- Verify the spline count against your transmission output.
- Check the runout before final assembly to avoid vibration issues.
- Torque all fasteners to the manufacturer's specifications.
- Balance the shaft if you notice any vibrations during operation.
Additional information
| Bearing dia | 1.181 |
|---|---|
| Butt dia | 1.844 |
| End to weld | 5.395 |
| Notes | USED WITH: 1452-8602 |
| Partn number | 1453-861 |
| Splines count dia | 21 X 0.900 |
| Splines length | 931 |
| Tube dia | 2.000 |
| Tube wall | 0.083" |
| Style | CVJ |
