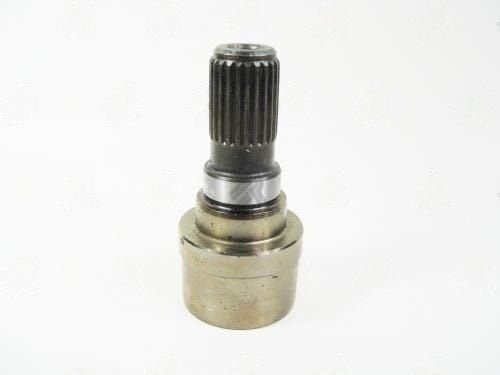

1453-232 – Stub & Midship Shaft – 22/23 X 0.990 Splines – Butt Dia 1.875″ – Tube Dia Wall 2.000×0.065
$76.18
Description
The 1453-232 Stub & Midship Shaft is a critical component in your driveline assembly, specifically engineered to work seamlessly with the 1404-231 midship yoke. This shaft transmits torque effectively from the transmission to the differential, ensuring smooth power delivery and stability under load. With a spline count of 22/23 X 0.990, it fits snugly into the yoke, providing a reliable connection that minimizes backlash and wear.
Measuring 1.875″ in butt diameter and featuring a tube diameter of 2.000″ with a wall thickness of 0.065″, the 1453-232 is built to handle the demands of high-performance applications. The splines length of 1.800″ ensures proper engagement, while the end-to-weld measurement of 3.125″ allows for precise installation. It’s essential to maintain the correct phasing during installation to prevent vibration issues, which can lead to premature failure.
- Verify spline count and ensure compatibility with 1404-231 midship yoke.
- Check runout before installation to avoid vibration.
- Torque bolts to manufacturer specifications for secure fastening.
- Inspect the entire driveline system for wear and alignment.
In summary, the 1453-232 Stub & Midship Shaft is designed for durability and performance, making it an essential part of your driveline setup.
| Butt dia | 1.875 |
|---|---|
| End to weld | 3.125 |
| Notes | Use with 1404-231 midship yoke |
| Partn number | 1453-232 |
| Remaining stock | <10 |
| Splines count dia | 22/23 X 0.990 |
| Splines length | 1.800 |
| Tube dia | 2.000 |
| Tube wall | 0.065" |
| Style | FIXED |
