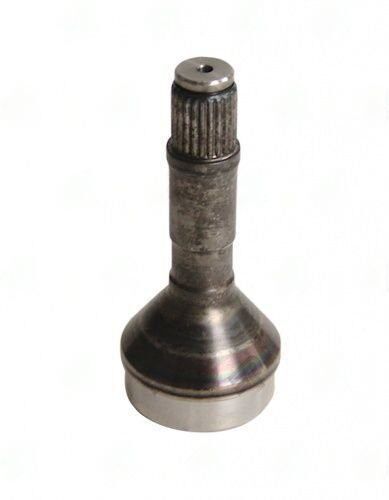

1442-242 – Stub & Midship Shaft – 24 X 0.767 Splines – Butt Dia 1.875″ – Tube Dia Wall 2.000×0.065
$89.10
Description
The 1442-242 Stub & Midship Shaft is engineered to deliver reliable torque transmission in driveline applications. With 24 X 0.767 splines and a butt diameter of 1.875″, this shaft is specifically designed to work with the 1452-7801 CVJ Kit. Its construction ensures that it can handle the torque loads typical in performance and heavy-duty applications.
One of the key considerations in the design of the 1442-242 is its critical speed limits, which are influenced by the tube diameter and wall thickness. The tube diameter of 2.000″ with a wall thickness of 0.065″ strikes a balance between weight and strength, allowing for efficient power transfer without compromising durability. The length of 780″ is optimized to fit specific vehicle applications, ensuring a precise fit that minimizes vibration and enhances performance.
- Verify spline count and diameter to ensure compatibility.
- Check the end-to-weld measurement of 4.041″ for proper installation.
- Always balance the shaft after installation to prevent vibration.
When installing the 1442-242, it is crucial to inspect the phasing marks and torque all fasteners to the manufacturer’s specifications. This attention to detail will ensure the longevity and reliability of your driveline system.
| Butt dia | 1.875 |
|---|---|
| End to weld | 4.041 |
| Notes | Used with 1452-7801 CVJ Kit |
| Partn number | 1442-242 |
| Remaining stock | >10 |
| Splines count dia | 24 X 0.767 |
| Splines length | 780 |
| Tube dia | 2.000 |
| Tube wall | 0.065" |
| Style | CVJ |
