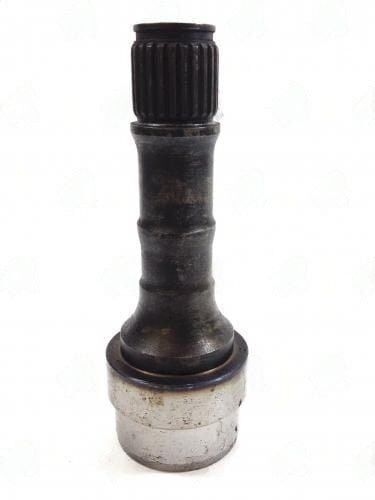

1442-241 – Stub & Midship Shaft – 24 X 1.020 Splines – Butt Dia 1.812″ – Tube Dia Wall 2.000X0.0095
$87.79
Description
1442-241 is a critical component in your driveline setup, specifically designed for use with the 3052-9403 CVJ Kit. This Stub & Midship Shaft features 24 X 1.020 splines, a butt diameter of 1.812″, and a tube wall thickness of 0.0095″. If you’re experiencing vibration or torque transfer issues, this shaft could be the solution you need.
When diagnosing driveline problems, a worn or damaged stub and midship shaft can lead to significant performance issues. Symptoms like vibrations during acceleration or unusual noises can indicate that the splines or the shaft itself are failing. The precise dimensions of the 1442-241 ensure that it fits perfectly, maintaining the integrity of the torque path and load stability.
- Splines Count: 24 X 1.020
- Butt Diameter: 1.812″
- Tube Diameter Wall: 2.000 X 0.0095
- End to Weld: 4.833″
- Compatibility: Used with 3052-9403 CVJ Kit
Installing the 1442-241 requires careful attention to detail. Ensure that you verify the phasing marks and check for runout before securing the bolts. Proper installation is key to restoring function and preventing future issues. If you suspect your current shaft is compromised, replacing it with the 1442-241 will help restore the driveline’s performance and reliability.
| Butt dia | 1.812 |
|---|---|
| End to weld | 4.833 |
| Notes | Used with 3052-9403 CVJ Kit |
| Partn number | 1442-241 |
| Remaining stock | <10 |
| Splines count dia | 24 X 1.020 |
| Splines length | 778 |
| Tube dia | 2.000 |
| Tube wall | 0.095" |
| Style | CVJ |
