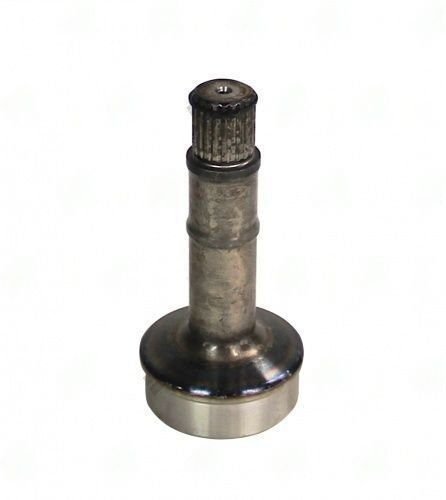

1442-211 – Stub & Midship Shaft – 21 X 0.890 Splines – Butt Dia 2.344″ – Tube Dia Wall 2.500X0.083
$74.88
Description
The 1442-211 Stub & Midship Shaft is engineered for optimal torque transmission in driveline applications. With 21 X 0.890 splines and a butt diameter of 2.344″, this shaft is designed to fit seamlessly into your setup. Before installation, ensure that the spline count matches your transmission output to avoid compatibility issues. A common oversight is mismatching the spline count, which can lead to significant installation headaches.
This shaft measures 985″ in length, making it crucial to verify that this dimension aligns with your vehicle’s specifications. The tube diameter of 2.500″ and wall thickness of 0.083″ provide the necessary strength while maintaining a balance between weight and durability. Pay attention to the end-to-weld measurement of 4.500″—this is critical for ensuring proper fitment and alignment.
- Check spline count against your transmission output before installation.
- Verify the length (985″) to match your application precisely.
- Ensure the tube diameter (2.500″) and wall thickness (0.083″) meet your strength requirements.
- Inspect for any signs of wear or damage before installation.
- Torque bolts to specification to prevent failures during operation.
By following these guidelines, you can ensure that the 1442-211 Stub & Midship Shaft performs reliably, minimizing vibrations and maximizing operational speed.
| Butt dia | 2.344 |
|---|---|
| End to weld | 4.500 |
| Partn number | 1442-211 |
| Remaining stock | >10 |
| Splines count dia | 21 X 0.890 |
| Splines length | 985 |
| Tube dia | 2.500 |
| Tube wall | 0.083" |
| Style | CVJ |
More Parts from the same Category
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stub & Midship Shaft (170) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Remaining stock '+10 Partn number 1253-242 Butt dia 1.875 Splines count dia 24 x 0.995 End to weld 2.875 Style FIXED Notes use is with : 1204-241 nut sold sepratly: 858018 Tube dia 2.000 Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.375 End to weld 3.125 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-261 Remaining stock >10 Splines count dia 26 x 1.115 Splines length 1.120 Tube dia 2.500 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 1.875 End to weld 2.875 Notes USE WITH: 1204-261 , Uses 858018 nut Partn number 1253-262 Remaining stock >10 Splines count dia 26 x 1.115 Splines length 1.180 Tube dia 2.000 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.375 End to weld 6.625 Notes This stub also has snap ring groove at 16mm to retain bearing. USE IT WITH: 2252-682 Partn number 1254-681 Remaining stock >10 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Style CVJ Tube wall 0.065" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.344 End to weld 6.625 Notes use it with: 2252-682 Partn number 1254-683 Remaining stock <10 Splines count dia 19 X 0.850 Splines length 775 Tube dia 2.500 Tube wall 0.083" Style CVJ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 7.500 Notes TOYOTA Partn number 1340-20 Remaining stock <10 Splines count dia 20 X 1.310 Splines length 1.765 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 9.375 Notes Toyota, Sold only in kit 1343-20L Partn number 1340-20L Remaining stock <10 Splines count dia 20 X 1.310 Splines length 6.500 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Butt dia 2.435 End to weld 6.375 Notes TOYOTA Partn number 1340-21 Remaining stock >10 Splines count dia 20 X 1.310 Splines length 1.880 Tube dia 2.560 Tube wall 0.065" Style Slip | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.435 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-231 Remaining stock >10 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.560 Tube wall 0.065" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bearing dia 1.181 Butt dia 2.344 End to weld 4.000 Notes Fits Toyota OE Tube / 1374-233 nut included ⋅ Use with: 1301-231 Partn number 1353-232 Remaining stock >10 Splines count dia 23 X 0.990 Splines length 1.375 Tube dia 2.500 Tube wall 0.083" Style FIXED | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
