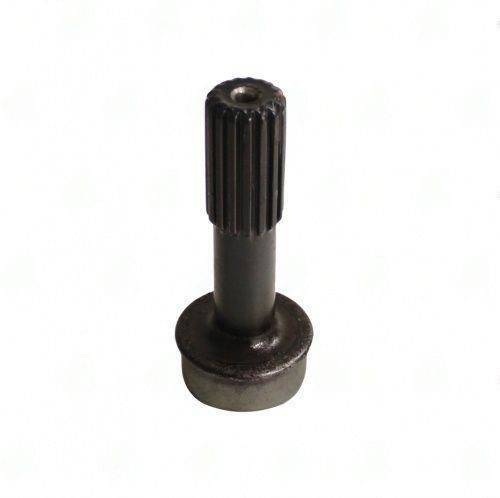

1442-209 – Stub & Midship Shaft – 16 X 1.063 Splines – Butt Dia 1.812″ – Tube Dia 2.000
$51.18
Description
The 1442-209 Stub & Midship Shaft is a critical component in your driveline, specifically designed to transmit torque efficiently from the transmission to the differential. With 16 X 1.063 splines, this shaft ensures a secure connection, minimizing the risk of failure during operation. The butt diameter of 1.812″ and tube diameter of 2.000″ provide the necessary strength and rigidity for demanding applications.
One of the key aspects of the 1442-209 is its compatibility with the 1403-16, which is essential for maintaining the integrity of your driveline system. This shaft features a slip style design, allowing for necessary movement and adjustment during operation. The splines length of 1.978″ and an end-to-weld measurement of 4.155″ ensure that it fits perfectly within the designated space, preventing any misalignment that could lead to vibrations or premature wear.
When installing the 1442-209, keep these tips in mind:
- Verify the spline count and ensure it matches the transmission output.
- Check the runout before installation to prevent vibrations.
- Torque all bolts to the manufacturer’s specifications for optimal performance.
- Inspect the mating components for wear and compatibility.
In summary, the 1442-209 Stub & Midship Shaft is engineered for reliability and performance, making it an indispensable part of your driveline assembly.
| Butt dia | 1.812 |
|---|---|
| End to weld | 4.155 |
| Notes | USE WITH : 1403-16 |
| Partn number | 1442-209 |
| Remaining stock | <10 |
| Splines count dia | 16 X 1.063 |
| Splines length | 1.978 |
| Tube dia | 2.000 |
| Tube wall | 0.095" |
| Style | Slip |
