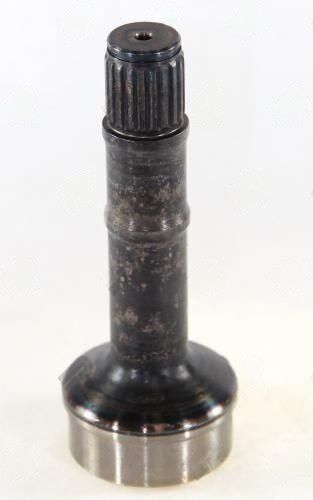

1442-202 – Stub & Midship Shaft – 20 X 0.853 Splines – Butt Dia 1.875″ – Tube Dia Wall 2.000×0.065
$61.93
Description
The 1442-202 Stub & Midship Shaft is engineered to deliver reliable torque transmission from the transmission to the differential. With a spline count of 20 X 0.853, this shaft is designed to fit precisely into compatible U-joints, ensuring optimal performance and durability. The butt diameter of 1.875 inches is crucial as it determines the fitment into the transmission output, directly affecting the torque handling capabilities.
Measuring 739 inches in length, this shaft is specifically tailored for applications such as 1414-86 and 1418-86. The length must be matched exactly to prevent any misalignment issues that could lead to premature wear or failure. Additionally, the tube diameter of 2.000 inches and a wall thickness of 0.065 inches provide the necessary strength while maintaining a manageable weight.
When installing the 1442-202, pay close attention to the phasing marks to ensure proper alignment. It’s also essential to check for runout and balance the assembly if any vibrations are detected during operation. Proper installation will maximize the lifespan of the shaft and maintain the integrity of the entire driveline system.
- Check spline count and diameter for compatibility.
- Verify length from flange to flange to ensure a perfect fit.
- Torque all fasteners to the manufacturer’s specifications.
- Inspect mating components for wear before installation.
- Balance the assembly if vibrations occur during operation.
| Butt dia | 1.875 |
|---|---|
| End to weld | 4.500 |
| Notes | 1414-86 ,1418-86 ,USE WITH: 1452-8601 |
| Partn number | 1442-202 |
| Remaining stock | >10 |
| Splines count dia | 20 X 0.853 |
| Splines length | 739 |
| Tube dia | 2.000 |
| Tube wall | 0.065" |
| Style | CVJ |
