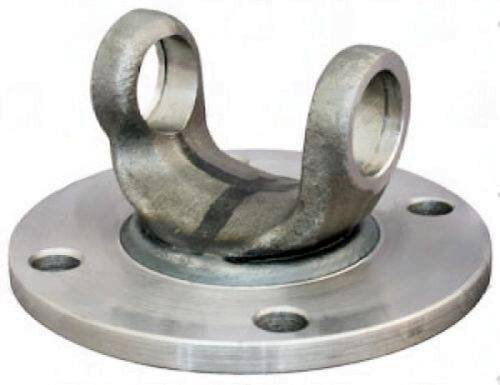

1402-99 – Flange Yokes – 1100 Series – Bolt Circle Dia 3.750″ – Pilot Dia 2.750-M

When working with the 1402-99 Flange Yoke, you’re dealing with a critical component for 1100 Series driveshaft connections. This yoke features a bolt circle diameter of 3.750 inches and a pilot diameter of 2.750 inches, ensuring a secure fit for your application. Before installation, double-check the four bolt holes, each measuring 0.440 inches in diameter, to ensure they align perfectly with your companion flange.

One common mistake is misaligning the yoke during installation. Always verify the orientation of the yoke in relation to the driveshaft and the transmission or differential. This yoke connects directly to the driveshaft, so proper phasing is essential to avoid vibrations and premature wear.

• Check the spline engagement depth before sliding the yoke onto the shaft.
• Ensure the bolt holes are clean and free of debris for a proper seal.
• Torque the bolts to the manufacturer’s specifications to prevent loosening.
• Inspect the mating components for wear or damage before installation.

With a CJ to flat measurement of 1.625 inches, the 1402-99 is designed to fit seamlessly into your driveline setup. Remember, proper installation is key to achieving optimal performance and longevity from your driveshaft system. The 1402-99 Flange Yoke is an essential part of your toolkit for maintaining reliable driveline connections.
