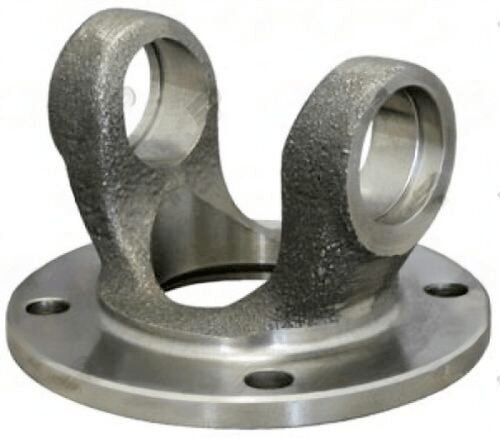

1402-9048 – Flange Yokes – 1100 Series – Bolt Circle Dia 2.910″ – Pilot Dia 1.840-F

The 1402-9048 Flange Yoke is a crucial component for ensuring reliable driveshaft connections, specifically designed for the 1100 Series U-Joint. This yoke features a bolt circle diameter of 2.910 inches, which is essential for proper alignment and torque transfer. The pilot diameter of 1.840-F ensures a snug fit, minimizing play and enhancing the overall stability of the driveline.

One of the standout features of the 1402-9048 is its four bolt holes, which allow for secure attachment to the companion flange. This is particularly important in high-torque applications where any looseness can lead to premature wear or failure. The bolt hole diameter of 0.315 inches is optimized for standard fasteners, making installation straightforward.

When comparing the 1402-9048 to other yokes, it’s important to note that the 1100 Series is distinct in its dimensions and design. Using a yoke from a different series can lead to compatibility issues, such as improper U-joint fitment or insufficient torque transfer. For example, a 1310 Series yoke may look similar but has different spline dimensions that can compromise the driveline’s performance.

• Series: 1100
• Bolt Circle Diameter: 2.910 inches
• Pilot Diameter: 1.840-F
• Bolt Hole Diameter: 0.315 inches
• Number of Bolt Holes: 4

In summary, the 1402-9048 Flange Yoke is engineered for optimal performance in driveshaft applications. Its precise dimensions and robust design make it a reliable choice for any fabrication shop or fleet technician looking to maintain or upgrade their driveline systems.
