1402-7566 – Flange Yokes – 1100 Series – Bolt Circle Dia 2.440″ – Pilot Dia 1.650-F

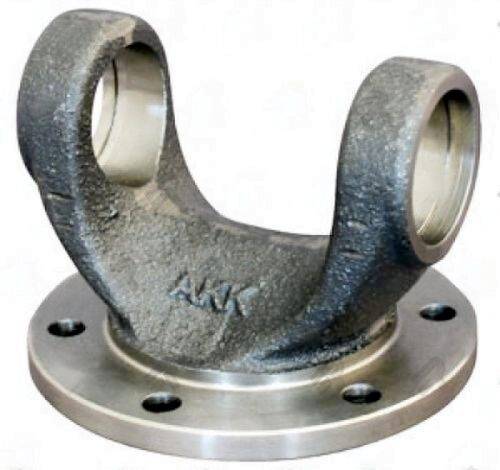

The 1402-7566 Flange Yoke is a vital component for any driveline setup utilizing 1100 Series U-Joints. This yoke connects the driveshaft to the transmission or differential, ensuring reliable power transfer. With a bolt circle diameter of 2.440 inches and a pilot diameter of 1.650 inches, it provides a secure fit for various applications.

When selecting a flange yoke, it’s crucial to match the specifications accurately. The 1402-7566 features six bolt holes, each with a diameter of 0.236 inches, allowing for easy installation and a robust connection. The Cj to flat measurement of 1.181 inches ensures proper alignment and function within the driveline. This yoke is designed to handle the demands of performance builds and fleet applications alike.

• Check spline engagement depth before installation.
• Verify phasing with the opposite yoke to prevent vibrations.
• Use appropriate torque specifications for bolt fasteners.
• Inspect mating components to ensure compatibility.
• Ensure the yoke is free from damage before installation.

In summary, the 1402-7566 Flange Yoke is engineered for durability and performance in demanding environments. Whether you’re working on a custom build or maintaining a fleet vehicle, this yoke delivers the reliability you need for optimal driveline function.
