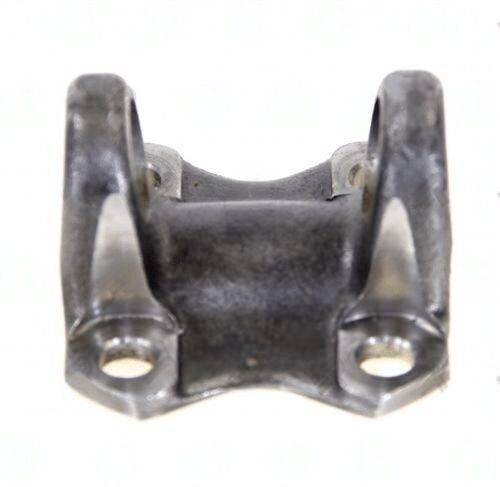

1402-45 – Flange Yokes – 1100 Series – Bolt Circle Dia 2.975″ – Pilot Dia 2.250-M

The 1402-45 Flange Yoke is engineered for precision in driveline applications, particularly within the 1100 Series. With a bolt circle diameter of 2.975 inches, this yoke ensures a secure connection to your transmission or differential. The male pilot diameter of 2.250 inches fits snugly into the corresponding component, providing stability and reducing the risk of misalignment during operation.

One of the standout features of the 1402-45 is its four bolt holes, each measuring 0.385 inches in diameter. This configuration allows for robust fastening, ensuring that the yoke remains securely attached under varying loads and driving conditions. The Cj to flat measurement of 1.181 inches is crucial for maintaining the correct phasing with the opposite yoke, which is essential for smooth operation and minimizing vibrations.

When installing the 1402-45, it’s important to check the spline engagement depth and ensure proper phasing with the opposite yoke. Avoid forcing the spline entry to prevent damage. This yoke is compatible with various applications, making it a versatile choice for fleet techs and performance builders alike.

• Series: 1100
• Bolt Circle Diameter: 2.975 inches
• Pilot Diameter: 2.250-M
• Bolt Hole Diameter: 0.385 inches
• Number of Bolt Holes: 4

In summary, the 1402-45 Flange Yoke is a reliable component that delivers the necessary specifications for effective driveline performance.
