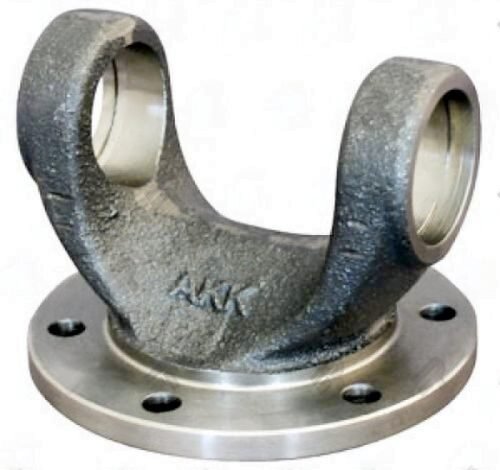

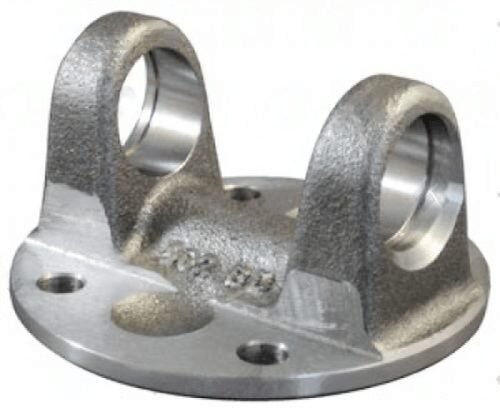

1402-39 Flange Yoke 1100 Series , Generally used on British Imports such as Triumph and MG.

When you’re dealing with a driveshaft that’s vibrating or misaligned, the culprit might just be a worn-out yoke. The 1402-39 Flange Yoke from the 1100 Series is designed to connect your driveshaft to the transmission or differential securely. With a bolt circle diameter of 2.750 inches and four bolt holes measuring 0.320 inches each, this yoke provides the necessary strength and stability for your driveline setup.

This yoke features a male pilot diameter of 2.245-M and a centerline of the joint to the flange face at 1.188 inches. These dimensions are crucial for ensuring a proper fit and alignment, especially in applications involving British imports like Triumph and MG. If you notice excessive play or a clunking noise during acceleration, it’s time to inspect the yoke and consider replacing it with the 1402-39.

Installation is straightforward, but remember to check the spline engagement depth and verify phasing with the opposite yoke to avoid further issues. Here are some key points to consider:

• Series: 1100
• Bolt Circle Dia: 2.750 inches
• Bolt Hole Dia: 0.320 inches
• Pilot Dia: 2.245-M
• Bolt Holes: 4

Choosing the right yoke can make all the difference in your driveline performance. The 1402-39 is a reliable choice for those looking to maintain or upgrade their driveline components.
