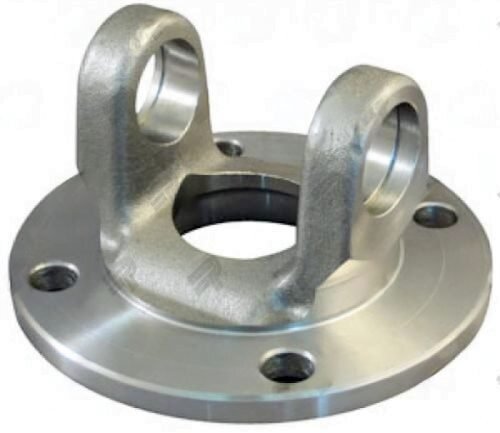

1402-35 – Flange Yokes – 1100 Series – Bolt Circle Dia 3.540″ – Pilot Dia 2.203-M

The 1402-35 Flange Yoke is engineered specifically for 1100 Series applications, providing critical connections between your driveshaft and drivetrain components. With a bolt circle diameter of 3.540 inches and a pilot diameter of 2.203 inches, this yoke ensures a secure fit and reliable performance under various load conditions. The four bolt holes, each with a diameter of 0.410 inches, facilitate easy installation while maintaining structural integrity.

Engineers designed the 1100 Series to handle moderate torque loads while keeping weight to a minimum, making it ideal for applications where efficiency and performance are paramount. The yoke’s unique dimensions, including a centerline of the joint to the flange face measuring 1.562 inches, allow for optimal alignment and phasing with mating components, which is crucial for reducing vibrations and extending the lifespan of the driveline.

• Series: 1100
• Bolt Circle Diameter: 3.540 inches
• Pilot Diameter: 2.203 inches
• Bolt Hole Diameter: 0.410 inches
• Number of Bolt Holes: 4

When installing the 1402-35, ensure proper spline engagement and alignment with the opposite yoke to avoid premature wear or failure. This yoke is a reliable choice for those looking to maintain or upgrade their driveline systems.
